Purple Valves
PRPLZ023

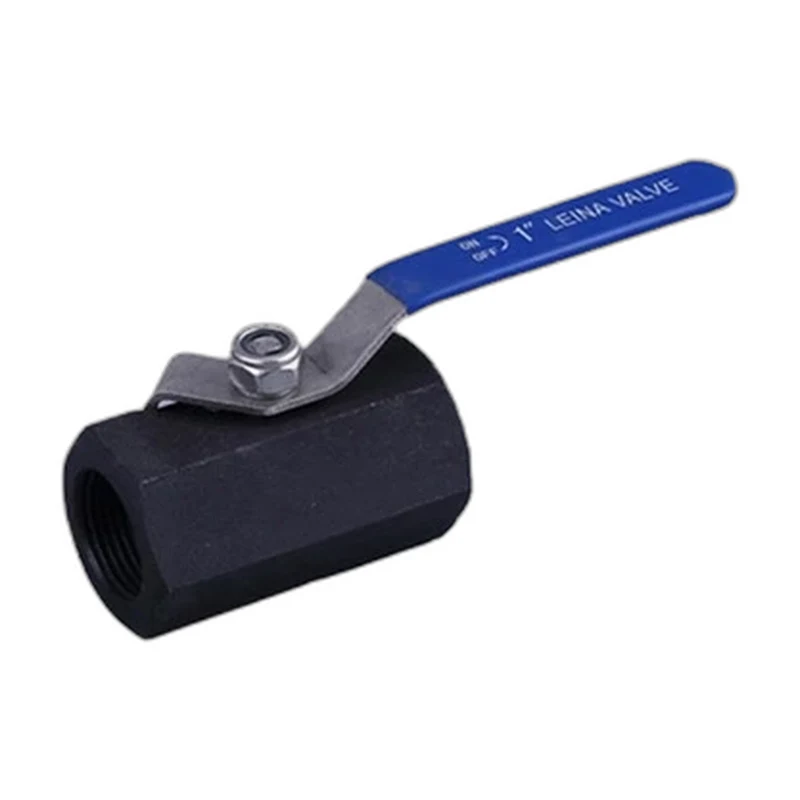

1 Piece Hexagon Ball Valve 2000PSI
A compact one-piece hexagon-bodied carbon steel ball valve rated to 2000 PSI WOG for general service shut-off duty.
Size1/4" to 2"Pressure2000 PSI (WOG)PortReduced PortBodyOne Piece
This one-piece hexagon ball valve is machined from forged ASTM A105 carbon steel for a robust, leak-tight body in a space-saving hexagonal profile. Rated to 2000 PSI WOG and threaded to ASME B1.20.1 NPT, it handles air, water, oil and gas across a wide working temperature band, with an A182 F316 stainless ball and stem and reinforced PTFE seats delivering reliable, low-torque quarter-turn isolation in general industrial systems.
Specifications
Size Range
1/4" to 2"
Pressure Rating
2000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded ASME B1.20.1 NPT
Body Material
ASTM A105 (Carbon Steel)
Ball / Disc / Wedge Material
A182 F316 Stainless Steel
Seat Material
RPTFE
Stem Material
A182 F316 Stainless Steel
Port Type
Reduced Port
Body Style
One Piece
Operation
Lever
Applications
General service, air, water, oil and gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Compact one-piece hexagon body for tight installations
- Forged ASTM A105 carbon steel construction
- Stainless steel ball and stem with RPTFE seats
- Threaded NPT ends to ASME B1.20.1
- Low-torque quarter-turn operation
Options
- Locking lever handle
- Mounting pad for actuation
- Alternative seat materials
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598
- MSS SP-72
Dimensions
| Design & Testing Inte rnational Standard: |
| Valve Design | : ANSI B 16.34 |
| Pressure Testing | : ASME B16.34/ API 598 |
| Face To Face | : ASME B 16.10 |
| Connection ends | :ANSI B1.12.1 |
| Size | : 1/4″ to 24″ (DN8-DN100) |
| Pressure | :1000PSI,2000PSI,3000PSI,6000PSI |
| Material | :A105N,F304,F316,Alloy 20#, Duplex Stainless Steel 2205 |
