Purple Valves
PRPLZ093

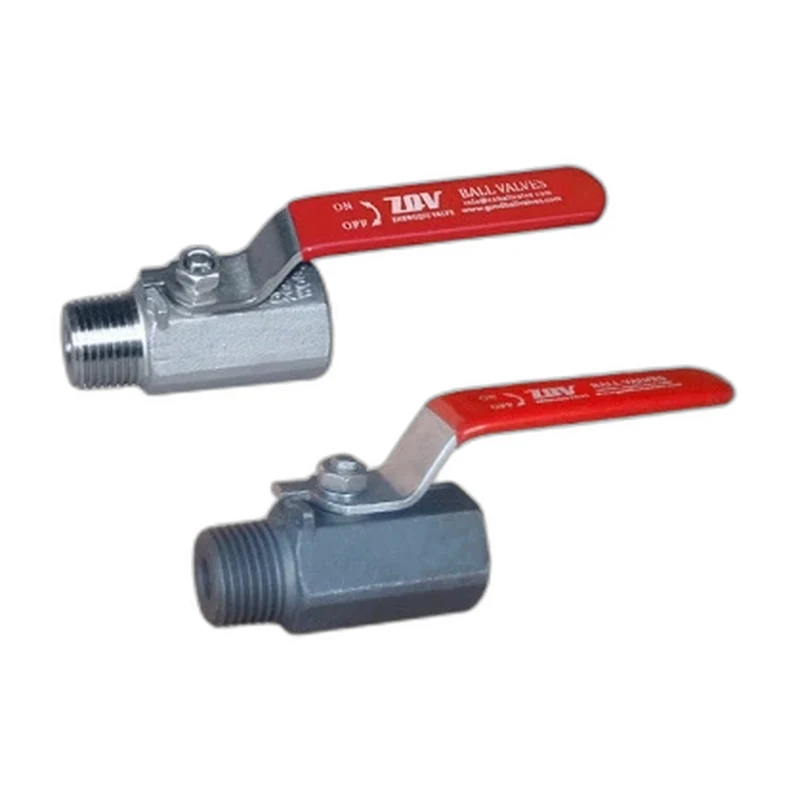

1 Piece Male Female Screwed Ball Valve
A compact one piece male x female screwed ball valve in stainless or carbon steel, 1/4 inch and 1/2 inch, rated 2000 PSI WOG.
Size1/4 inch and 1/2 inchPressure2000 PSI WOGPortReduced PortBodyOne Piece
The 1 Piece Male Female Screwed Ball Valve is a compact, economical isolation valve with male x female NPT ends for tight spaces and instrument lines. The one piece body and floating ball give reliable shut-off on Delrin or PEEK seats in general service, air, water and oil and gas. Built to ASME B16.34 and MSS SP-110 in A216 WCB or A351 CF8M, it is rated to 2000 PSI WOG in 1/4 inch and 1/2 inch reduced port.
Specifications
Size Range
1/4 inch and 1/2 inch
Pressure Rating
2000 PSI WOG
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT (ASME B1.20.1), male x female
Body Material
A216 WCB / A351 CF8M
Ball / Disc / Wedge Material
A182 F316
Seat Material
Delrin / PEEK
Stem Material
A182 F316
Port Type
Reduced Port
Body Style
One Piece
Operation
Lever
Applications
Instrument Lines, Air, Water, Oil and Gas, General Service
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Compact one piece body
- Male x female NPT ends
- Floating ball for tight shut-off
- Delrin / PEEK seats
- Stainless or carbon steel
Options
- Body: WCB or CF8M
- Seat: Delrin or PEEK
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598
