Series 100A
PRPLJ041

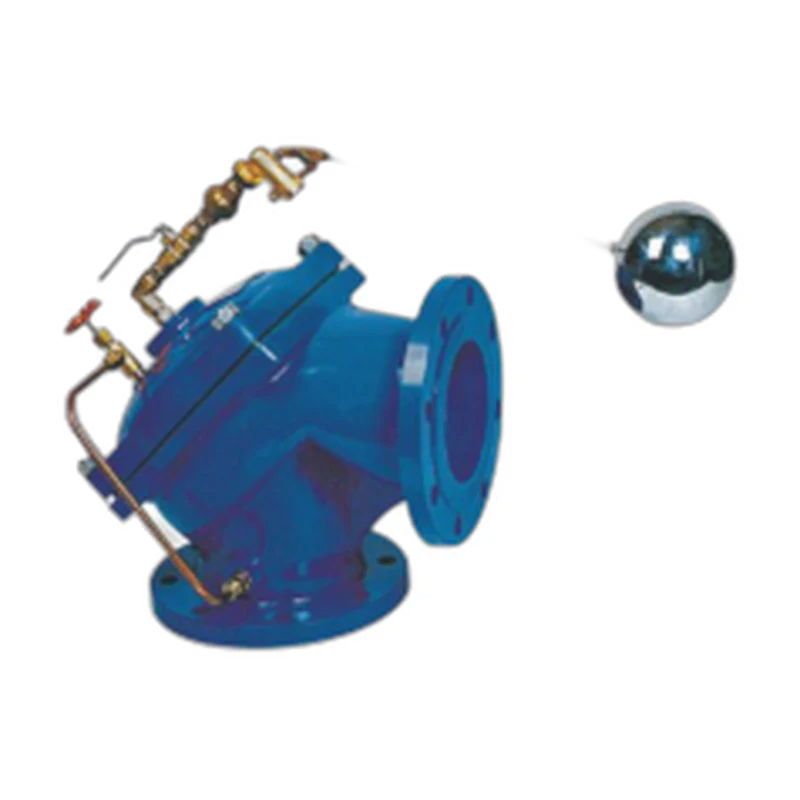

100A Angular Water Level Setting Valve
An angle-pattern water level setting valve that automatically maintains reservoir or tank level using a float-pilot controlled main valve.
SizeDN50 to DN400PressurePN10 / PN16BodyAngle diaphragm level control valve
The 100A angular water level setting valve maintains tank and reservoir levels with an angle-pattern body that simplifies tank-side installation. A float pilot signals the main valve to throttle closed as the set level is reached, giving smooth, non-slam level control and tight shut-off.
Specifications
Product Code
100A
Size Range
DN50 to DN400
Pressure Rating
PN10 / PN16
End Connections
Flanged (angle pattern)
Body Material
Ductile iron, epoxy coated
Body Style
Angle diaphragm level control valve
Operation
Float pilot, hydraulically actuated
Applications
Reservoir and tank level control
Design Standard
GB/T, manufacturer standard
Key Features
- Angle-pattern tank installation
- Float-controlled level setting
- Non-slam closure
- Drip-tight shut-off
