Series 100S
PRPLJ042

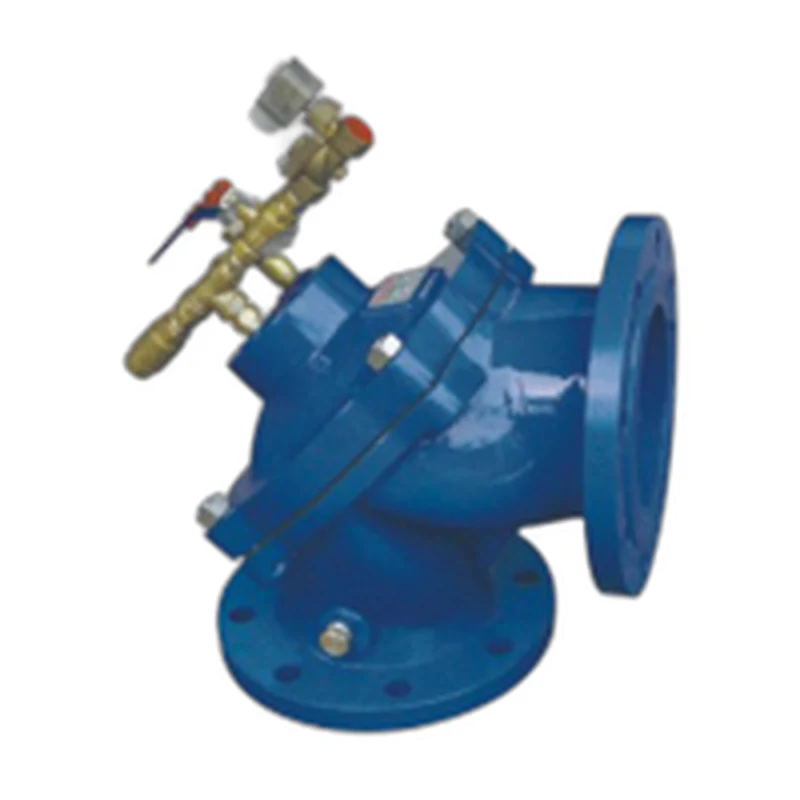

100S Angular Membrane Mud Valve
An angle-pattern diaphragm (membrane) mud valve for draining sludge and sediment from tanks and basins in water and wastewater treatment.
SizeDN50 to DN400PressurePN6 / PN10BodyAngle diaphragm (membrane) valve
The 100S angular membrane mud valve uses a flexible diaphragm and an angle-pattern body to provide reliable, unobstructed discharge of mud, sludge and sediment from settling tanks and basins. The membrane design resists clogging and abrasion, giving dependable shut-off on solids-laden media.
Specifications
Product Code
100S
Size Range
DN50 to DN400
Pressure Rating
PN6 / PN10
End Connections
Flanged (angle pattern)
Body Material
Cast iron / ductile iron, lined
Body Style
Angle diaphragm (membrane) valve
Operation
Handwheel / actuated
Applications
Sludge and sediment draining in treatment plants
Design Standard
GB/T, manufacturer standard
Key Features
- Angle-pattern unobstructed flow
- Clog-resistant diaphragm
- Handles abrasive sludge
- Reliable shut-off
