PRPLZ132

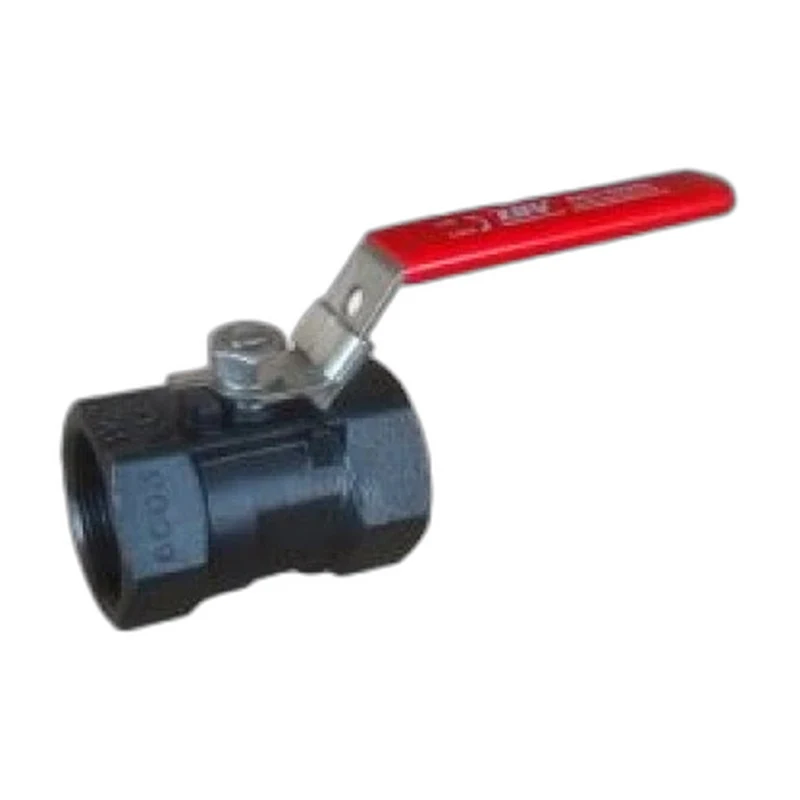

1PC Reduced Port Threaded Ball Valve 1000 WOG
A one-piece reduced-port threaded ball valve rated to 1000 WOG for economical general service shut-off.
Size1/4" to 2"Pressure1000 WOGPortReduced PortBodyOne Piece
This one-piece reduced-port ball valve offers a cost-effective, compact solution for general isolation duties at 1000 WOG. Available in A351 CF8M stainless or A216 WCB carbon steel bodies with an A182 F316 stainless ball and stem, it is threaded to ASME B1.20.1 NPT and suited to air, water, oil and gas service. The reduced-port design keeps the envelope small while delivering reliable quarter-turn operation across a broad temperature range.
Specifications
Size Range
1/4" to 2"
Pressure Rating
1000 WOG
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded ASME B1.20.1 NPT
Body Material
A351 CF8M / A216 WCB
Ball / Disc / Wedge Material
A182 F316 Stainless Steel
Seat Material
Delrin / PEEK
Stem Material
A182 F316 Stainless Steel
Port Type
Reduced Port
Body Style
One Piece
Operation
Lever
Applications
General service, air, water, oil and gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Economical one-piece reduced-port design
- Stainless or carbon steel body options
- Stainless ball and stem
- Threaded NPT ends to ASME B1.20.1
- Low-torque quarter-turn operation
Options
- Locking lever handle
- Delrin or PEEK seats
- Mounting pad for actuation
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598
- MSS SP-72
Dimensions
| Item | PART NAME | MATERIAL |
| 1 | BODY | A216-WCB(CC) |
| 2 | BODY INSERT | A105(CC) |
| 3 | ANTI-STATIC DEVICE | A351-CF8M(SS) |
| 4 | STEM | A182 F316(SS) |
| 5 | BALL | A182 F316(SS) |
| 6 | SEAT | RPTEF |
| 7 | TRUST WASHER | RPTEF |
| 8 | STEAM PACKING | GRAPHITE |
| 9 | GLAND | A351-CF8(SS) |
| 10 | HANDLE | SS+PVC |
| 11 | RING | SS |
| 12 | NUT | A2-70(SS) |
| SIZE | d | A | B | C | D | 2/UNC | NPT | KGS |
| 1/2″ | 9.00 | 66.00 | 10.25 | 29.00 | 44.00 | 10-24UNC | 1/2″ | 0.28 |
| 3/4″ | 12.50 | 72.00 | 10.25 | 33.00 | 53.00 | 10-24UNC | 3/4″ | 0.40 |
| 1″ | 15.00 | 82.00 | 12.75 | 42.00 | 62.50 | 10-24UNC | 1″ | 0.65 |
| 1-1/4″ | 20.00 | 90.00 | 14.00 | 48.00 | 64.00 | 10-24UNC | 1-1/4″ | 0.46 |
| 1-1/2″ | 24.50 | 98.00 | 15.25 | 60.00 | 74.00 | 1/4-24UNC | 1-1/2″ | 1.34 |
| 2″ | 32.00 | 110.00 | 15.25 | 60.00 | 79.00 | 1/4-24UNC | 2″ | 2.10 |
