Purple Valves
PRPLZ096

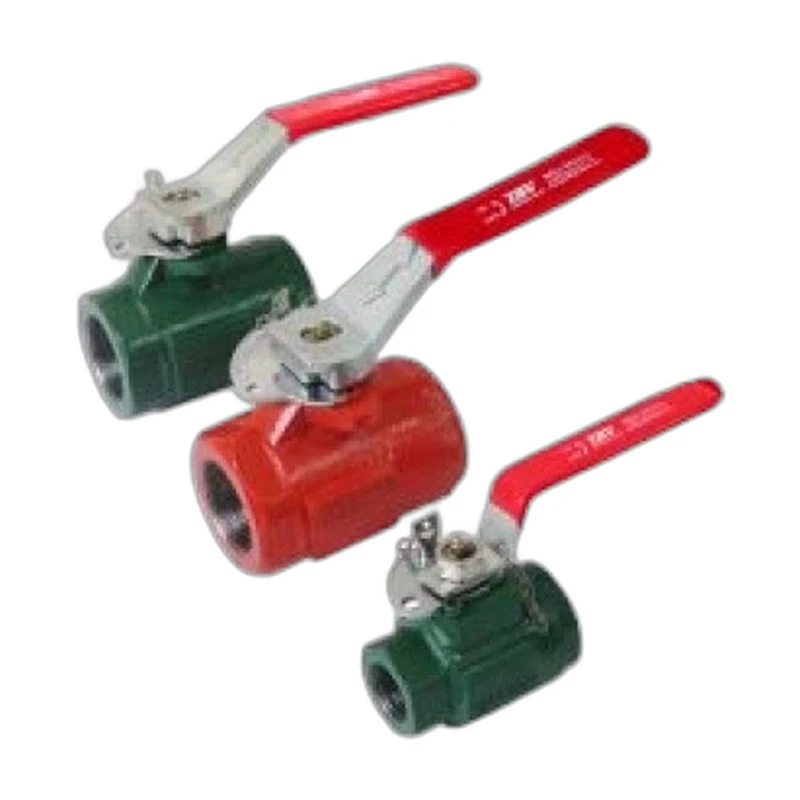

2 Piece Threaded Oilfield Ball Valve 2000 PSI
A two piece ductile iron oilfield ball valve with NPT or API LP ends, 1 inch to 4 inch, rated 1000-2000 PSI WOG.
Size1 inch to 4 inchPressure1000-2000 PSI WOGPortFull Port / Reduced PortBodyTwo Piece
The 2 Piece Threaded Oilfield Ball Valve is a rugged ductile iron valve for oilfield and general high pressure service, with NPT or API 5B line pipe ends. The floating ball and 400 series stainless trim seal on RPTFE seats for reliable isolation. Built to API 6D, API 608 and ASME B16.34, it is rated 1000 to 2000 PSI WOG from 1 inch to 4 inch in full or reduced port.
Specifications
Size Range
1 inch to 4 inch
Pressure Rating
1000-2000 PSI WOG
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT (ASME B1.20.1) / API 5B LP
Body Material
Ductile Iron
Ball / Disc / Wedge Material
400 Series Stainless Steel
Seat Material
RPTFE
Stem Material
400 Series Stainless Steel
Port Type
Full Port / Reduced Port
Body Style
Two Piece
Operation
Lever
Applications
Oilfield, Oil and Gas, General Service
Design Standard
ASME B16.34, MSS SP-110, API 6D, API 608
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Rugged ductile iron body
- NPT or API 5B line pipe ends
- 400 series stainless trim
- RPTFE seats
- Full or reduced port
Options
- Ends: NPT or API 5B LP
- Port: full or reduced
Standards & Certifications
- API 6D
- API 608
- ASME B16.34
Dimensions
| Body | ASTM A105- Carbon Steel ASTM A182 F304 / F304L- Stainless Steel ASTM A182 F316 / F316L- Stainless Steel ASTM A182 F11/F22- Alloy Steel |
| Ball | ASTM A 182 F304/F316/F304L/F316L |
| Stem | ASTM A182 F304/F316/F304L/F316L,SS420,17-4PH |
| Ball Seat& BodySeal |
TFM/MYLON 25% Glass Filled (RPTFE), 25% Carbon Filled (CPTFE) Peek /Delrin 304+Graphite |
| Design standard | BS EN ISO 17292 ( BS 5351), ASME B16.34, API 608,BS EN ISO 12516,BS EN 1983 |
| End Connection | Screed/Threaded End to ASME B1.20.1, Socket Weld End to ASME B16.11, Butt Weld End to ASME B16.25 |
| Ispection& Testing Stardard | API 598, BS EN ISO 12266-I(BS 6755 -I) |
| Manufacturing Size Range | 1”2”3”4” |
| Pressure Rating of Valve | 2000PSI 3000PSI 5000PSI |
| Option | Reduced Port /Full Port Blow-out-Proof Stem SAE Thread |
