Purple Valves
PRPLZ024

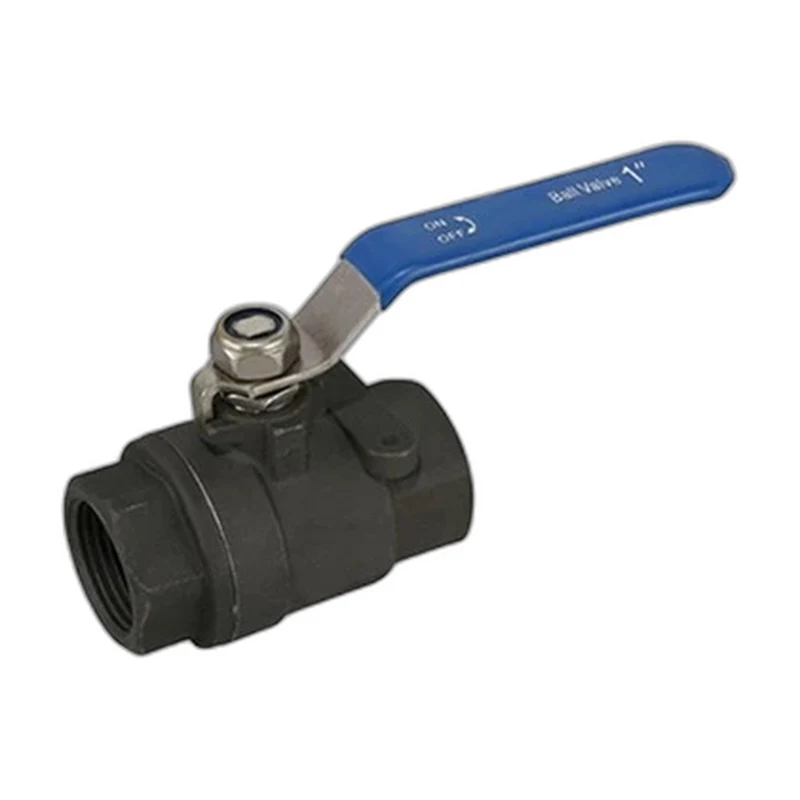

2 Piece Carbon Steel Ball Valve 2000PSI
A two-piece carbon steel ball valve rated to 2000 PSI WOG with full-port flow for general industrial service.
Size1/4" to 4"Pressure2000 PSI (WOG)PortFull PortBodyTwo Piece
This two-piece full-port ball valve is built on an A216 WCB carbon steel body for strength and economy in air, water, oil and gas systems. Rated to 2000 PSI WOG and threaded to ASME B1.20.1 NPT, it pairs an A182 F316 stainless ball and stem with reinforced PTFE seats for tight shut-off and unrestricted flow. The bolted two-piece construction allows straightforward maintenance and seat replacement in the field.
Specifications
Size Range
1/4" to 4"
Pressure Rating
2000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded ASME B1.20.1 NPT
Body Material
A216 WCB (Carbon Steel)
Ball / Disc / Wedge Material
A182 F316 Stainless Steel
Seat Material
RPTFE
Stem Material
A182 F316 Stainless Steel
Port Type
Full Port
Body Style
Two Piece
Operation
Lever
Applications
General service, air, water, oil and gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Full-port body for unrestricted flow
- Durable A216 WCB carbon steel construction
- Stainless ball and stem with RPTFE seats
- Threaded NPT ends to ASME B1.20.1
- Serviceable two-piece design
Options
- Locking lever handle
- Mounting pad for actuation
- Alternative seat materials
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598
- MSS SP-72
Dimensions
| No | Part | Matarial |
| 1 | BODY | ASTM A216 WCB |
| 2 | BALL | SS316 |
| 3 | BOONET | ASTM A216 WCB |
| 4 | SEAT | RPTFE |
| 5 | THRUST WASHER | RPTFE |
| 6 | PACKING | PTFE |
| 7 | GLAND | SS304 |
| 8 | STEM | SS316 |
| 9 | SPRING WASHER | SS304 |
| 10 | NUT | A2-70 |
| 11 | LOCKING DEVICE | SS201 |
| 12 | HANDLE | SS201 |
| Size | Port | Pressure | d | L | H | W | Weight (Lbs) | Torque (in.Lb) |
| 1/4” | FP | 2000PSI | 0.4528 | 2.4606 | 2.1535 | 3.8976 | 0.75 | 42 |
| 3/8” | FP | 2000PSI | 0.4921 | 2.4606 | 2.1535 | 3.8976 | 0.71 | 42 |
| 1/2” | FP | 2000PSI | 0.5906 | 2.5106 | 2.2677 | 4.1732 | 0.82 | 49 |
| 3/4” | FP | 2000PSI | 0.7874 | 2.9531 | 2.4724 | 4.7638 | 1.21 | 73 |
| 1” | FP | 2000PSI | 0.9843 | 3.5528 | 2.7953 | 5.9055 | 2.03 | 113 |
| 1-1/4 | FP | 2000PSI | 1.2598 | 4.0244 | 3.0827 | 5.9055 | 3.02 | 253 |
| 1-1/2 | FP | 2000PSI | 1.4961 | 4.5571 | 3.5827 | 6.4961 | 4.78 | 288 |
| 2” | FP | 2000PSI | 1.9291 | 5.3150 | 3.9252 | 7.0866 | 8.02 | 391 |
