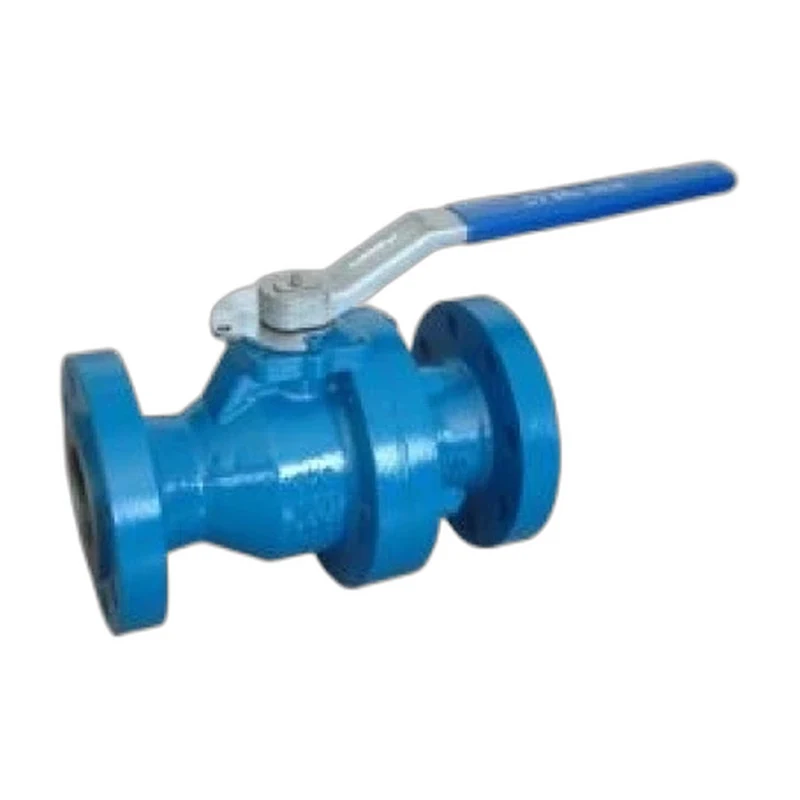

2 Piece Flanged Full Port Floating Ball Valve
A two piece full port floating ball valve with flanged ends, in carbon or stainless steel from 1/2 inch to 8 inch and ANSI Class 150 to 2500.
The 2 Piece Flanged Full Port Floating Ball Valve offers unobstructed full bore flow for low pressure drop and easy isolation in general service, air, water and oil and gas duties. The floating ball design seats firmly against the downstream seat for tight shut-off, while the two piece body keeps maintenance simple. Built to API 6D and ASME B16.34 in carbon or stainless steel, it is available from 1/2 inch to 8 inch across ANSI Class 150 to 2500 with RPTFE, Devlon or PEEK seats.
Specifications
Key Features
- Full bore for low pressure drop
- Floating ball for tight shut-off
- Two piece bolted body
- Flanged ASME B16.5 ends
- Carbon or stainless steel construction
Options
- Body: carbon or stainless steel
- Seat: RPTFE, Devlon or PEEK
- Operation: lever, gearbox, electric or pneumatic
Standards & Certifications
- API 6D
- ASME B16.34
- MSS SP-72
Dimensions
| Item | PART | MATERIAL |
| 1 | Bonnet | WCB/CF8M |
| 2 | Nuts | ASTM A194 2H/8 |
| 3 | Bolts | ASTM A193 B7 |
| 4 | Gasket | HNBE V-iton |
| 5 | Ball | ASTM A182 F316 |
| 6 | Stem | ASTM A182 F316 |
| 7 | Seat | DELRIN,RTFE,TFM |
| 8 | Body | WCB/CF8M |
| 9 | Thrust Washer | T-EFLON |
| 10 | Stem Seal | O Ring |
| 11 | Packing | PTFE |
| 12 | Stem Seal | O Ring |
| 13 | Lube Fitting | CS |
| 14 | Retainer Ring | Spring Steel |
| 15 | Stop Plate | CS |
| 16 | Handle | DI |
| 17 | Stop Pin | Spring Steel |
