Purple Valves
PRPLZ027

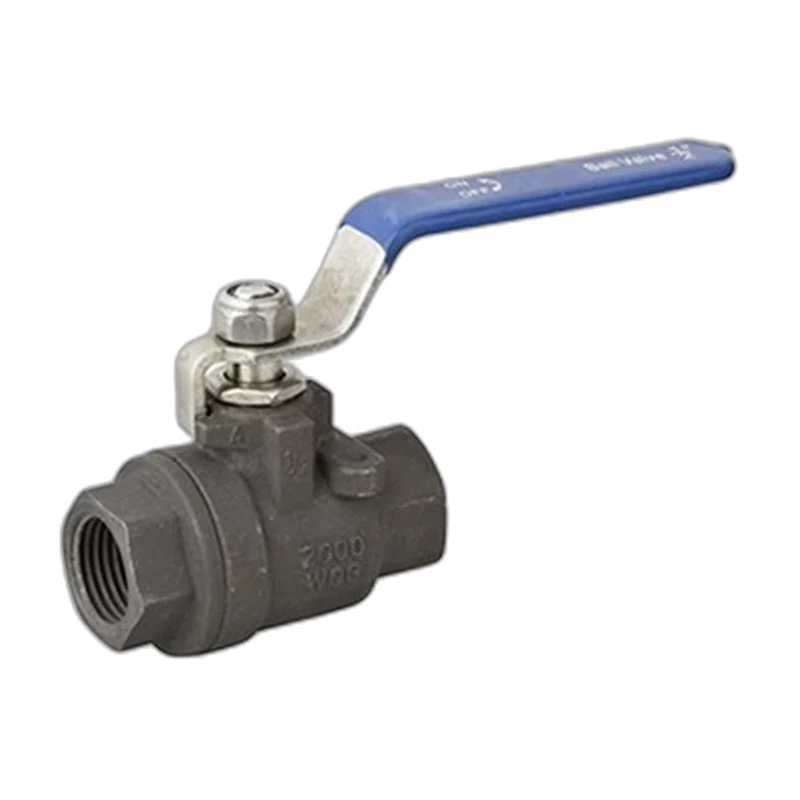

2 Piece Hexagon Ball Valve 2000PSI
A two-piece hexagon-bodied ball valve rated to 2000 PSI WOG with full-port flow for general service.
Size1/4" to 4"Pressure2000 PSI (WOG)PortFull PortBodyTwo Piece
This two-piece hexagon ball valve combines a robust full-port body with a compact hexagonal profile for general isolation in air, water, oil and gas systems. Offered in A216 WCB carbon or A351 CF8M stainless body grades and rated to 2000 PSI WOG, it features an A182 F316 stainless ball and stem with reinforced PTFE seats. Threaded to ASME B1.20.1 NPT, the serviceable two-piece design supports straightforward field maintenance.
Specifications
Size Range
1/4" to 4"
Pressure Rating
2000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded ASME B1.20.1 NPT
Body Material
A216 WCB / A351 CF8M
Ball / Disc / Wedge Material
A182 F316 Stainless Steel
Seat Material
RPTFE
Stem Material
A182 F316 Stainless Steel
Port Type
Full Port
Body Style
Two Piece
Operation
Lever
Applications
General service, air, water, oil and gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Compact hexagon body profile
- Full-port body for unrestricted flow
- Carbon or stainless body options
- Stainless ball and stem with RPTFE seats
- Serviceable two-piece design
Options
- Locking lever handle
- Stainless body materials
- Mounting pad for actuation
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598
- MSS SP-72
Dimensions
| No | Part | Matarial |
| 1 | BODY | ASTM A105 |
| 2 | CAP | ASTM A105 |
| 3 | SEAT | RPTFE |
| 4 | BALL | SS316 |
| 5 | STEM | SS316 |
| 6 | PACKING | PTFE |
| 7 | THRUST WASHER | PTFE |
| 8 | GLAND | SS304 |
| 9 | NUT | SS304 |
| 10 | HANDLE | SS201 |
| 11 | HANDLE COVER | PVC |
| 12 | GASKET | PTFE |
| 13 | SPRING WASHER | SS304 |
| Size | Port | Pressure | L |
| 1/4” | FP | 2000PSI | 85 |
| 3/8” | FP | 2000PSI | 85 |
| 1/2” | FP | 2000PSI | 85 |
| 3/4” | FP | 2000PSI | 95 |
| 1” | FP | 2000PSI | 105 |
| 1-1/4” | FP | 2000PSI | 120 |
| 1-1/2” | FP | 2000PSI | 130 |
| 2” | FP | 2000PSI | 150 |
