PRPLZ140

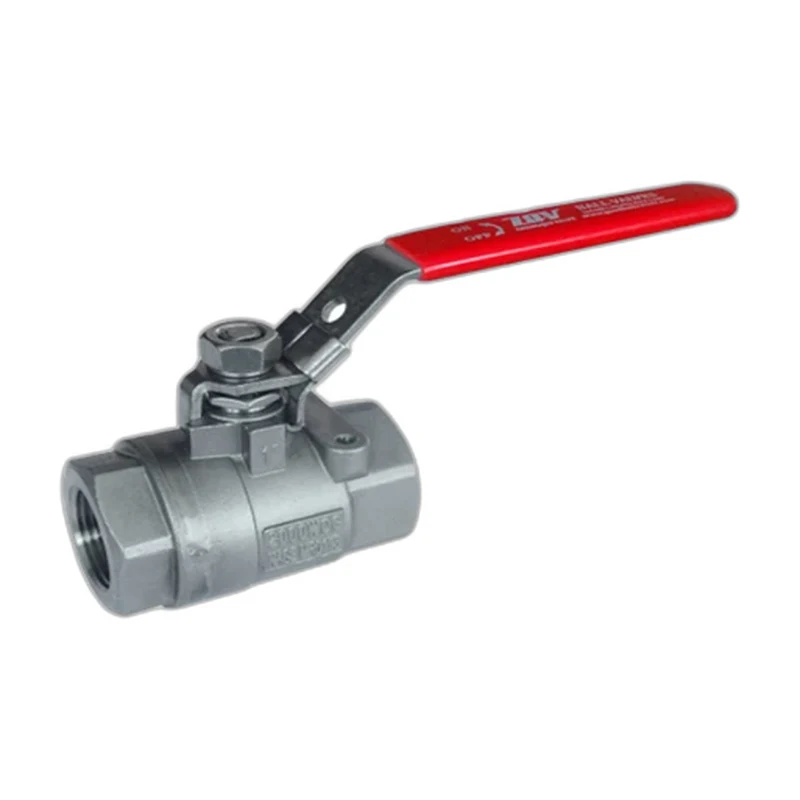

2 Piece Stainless Steel Ball Valve 2000PSI
A two-piece stainless steel ball valve rated to 2000 PSI WOG with full-port flow for corrosion-resistant service.
Size1/4" to 4"Pressure2000 PSI (WOG)PortFull PortBodyTwo Piece
Manufactured in A351 CF8M (316) stainless steel, this two-piece full-port ball valve delivers excellent corrosion resistance for air, water, oil and gas and process media at 2000 PSI WOG. It pairs an A182 F316 stainless ball and stem with reinforced PTFE seats for tight shut-off and unrestricted flow. Threaded to ASME B1.20.1 NPT, the bolted two-piece construction allows convenient field servicing and seat replacement.
Specifications
Size Range
1/4" to 4"
Pressure Rating
2000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded ASME B1.20.1 NPT
Body Material
A351 CF8M (316 Stainless Steel)
Ball / Disc / Wedge Material
A182 F316 Stainless Steel
Seat Material
RPTFE
Stem Material
A182 F316 Stainless Steel
Port Type
Full Port
Body Style
Two Piece
Operation
Lever
Applications
General service, air, water, oil and gas, process media
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Full 316 stainless steel construction
- Full-port body for unrestricted flow
- Stainless ball and stem with RPTFE seats
- Threaded NPT ends to ASME B1.20.1
- Serviceable two-piece design
Options
- Locking lever handle
- Alternative seat materials
- Mounting pad for actuation
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598
- MSS SP-72
Dimensions
| No | Part | Matarial |
| 1 | BODY | ASTM A351 CF8M |
| 2 | BALL | SS316 |
| 3 | BOONET | ASTM A351 CF8M |
| 4 | SEAT | RPTFE |
| 5 | THRUST WASHER | RPTFE |
| 6 | PACKING | PTFE |
| 7 | GLAND | SS304 |
| 8 | STEM | SS316 |
| 9 | SPRING WASHER | SS304 |
| 10 | NUT | A2-70 |
| 11 | LOCKING DEVICE | SS201 |
| 12 | HANDLE | SS201 |
| Size | Port | Pressure | d | L | H | W | Weight (Lbs) | Torque (in.Lb) |
| 1/4” | FP | 2000PSI | 0.4528 | 2.4606 | 2.1535 | 3.8976 | 0.75 | 42 |
| 3/8” | FP | 2000PSI | 0.4921 | 2.4606 | 2.1535 | 3.8976 | 0.71 | 42 |
| 1/2” | FP | 2000PSI | 0.5906 | 2.5106 | 2.2677 | 4.1732 | 0.82 | 49 |
| 3/4” | FP | 2000PSI | 0.7874 | 2.9531 | 2.4724 | 4.7638 | 1.21 | 73 |
| 1” | FP | 2000PSI | 0.9843 | 3.5528 | 2.7953 | 5.9055 | 2.03 | 113 |
| 1-1/4 | FP | 2000PSI | 1.2598 | 4.0244 | 3.0827 | 5.9055 | 3.02 | 253 |
| 1-1/2 | FP | 2000PSI | 1.4961 | 4.5571 | 3.5827 | 6.4961 | 4.78 | 288 |
| 2” | FP | 2000PSI | 1.9291 | 5.3150 | 3.9252 | 7.0866 | 8.02 | 391 |
