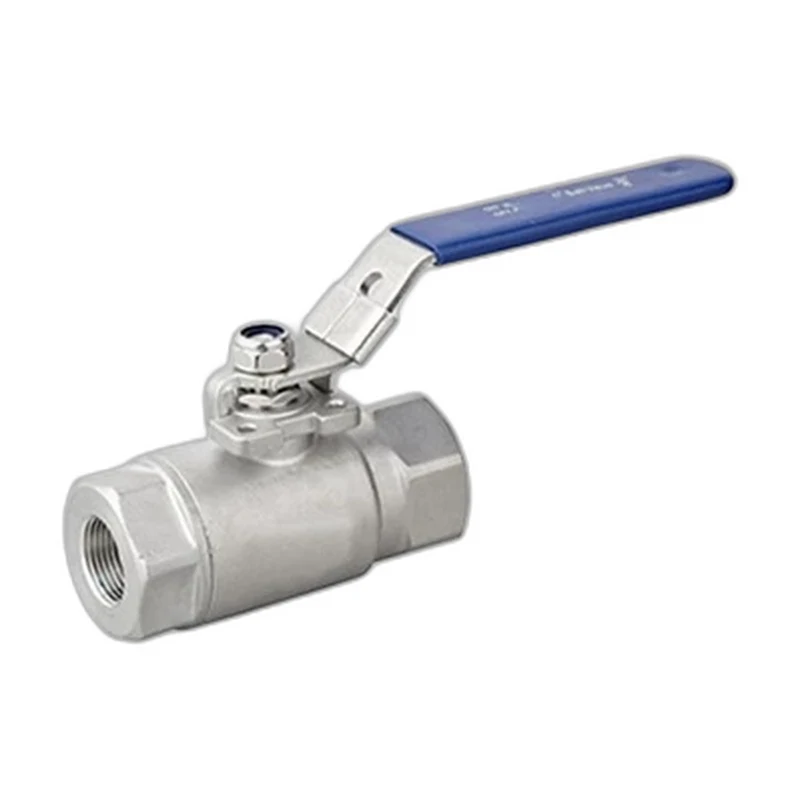

2 Piece Stainless Steel Ball Valve 3000PSI
2 PIECE STAINLESS STEEL BALL VALVE 3000PSI from ZQV / ZHENGQIU, a two piece general purpose ball valve with threaded asme b1.20.1 npt ends, rated to 3000 PSI (WOG).
This two piece 2 piece stainless steel ball valve 3000psi is a compact quarter-turn isolation valve designed for general service across air, water, oil and gas lines. It is offered in a 1/4“ to 2” size range with threaded asme b1.20.1 npt connections and a full port bore, providing reliable shut-off at pressures up to 3000 PSI (WOG). The A351 CF8M / A216 WCB body, A182 F316 ball and Delrin / Peek seats deliver dependable sealing and corrosion resistance, while the A182 F316 stem with a blow-out proof design ensures safe, repeatable operation throughout the rated temperature range. Manufactured to ASME B16.34 , MSS SP-110 and tested to MSS-SP72,API 598, it suits a wide range of industrial and process duties.
Specifications
Key Features
- Two Piece body design
- Full Port bore for minimal flow restriction
- Blow-out proof stem
- Rated to 3000 PSI (WOG)
- Corrosion-resistant A182 F316 ball and stem
Options
- Locking lever handle
- ISO 5211 mounting pad for actuation
- Pneumatic or electric actuator
- Stem extension
- Oxygen-cleaned service
Standards & Certifications
- ASME B16.34
- MSS SP-110
- MSS-SP72
- API 598
Dimensions
| No | Part | Matarial |
| 1 | BODY | ASTM A351 CF8M |
| 2 | SEAT | DELRIN, PEEK |
| 3 | BALL | SS316 |
| 4 | WASHER | SS316 |
| 5 | BONNET | ASTM A351 CF8M |
| 6 | GASKET | SS304 |
| 7 | WASHER | GRAPHITE |
| 8 | STEM | SS316 |
| 9 | PACKING | RPTFE |
| 10 | GLAND | SS304 |
| 11 | HANDLE | SS201+PVC |
| 12 | NUT | A2-70 |
| Size | Port | Pressure | d | L | H | S | M | E |
| 1/4” | FP | 3000PSI | 10 | 76 | 62 | 36 | M5 | 145 |
| 3/8” | FP | 3000PSI | 12.7 | 76 | 62 | 36 | M5 | 145 |
| 1/2” | FP | 3000PSI | 12.7 | 90 | 62 | 36 | M5 | 145 |
| 3/4” | FP | 3000PSI | 19 | 100 | 73 | 42 | M5 | 180 |
| 1” | FP | 3000PSI | 25 | 118 | 80 | 50 | M6 | 190 |
| 1-1/2” | FP | 3000PSI | 38 | 135 | 115 | 70 | M8 | 250 |
| 2” | RP | 3000PSI | 38 | 140 | 115 | 70 | M8 | 250 |
