Purple Valves
PRPLZ095

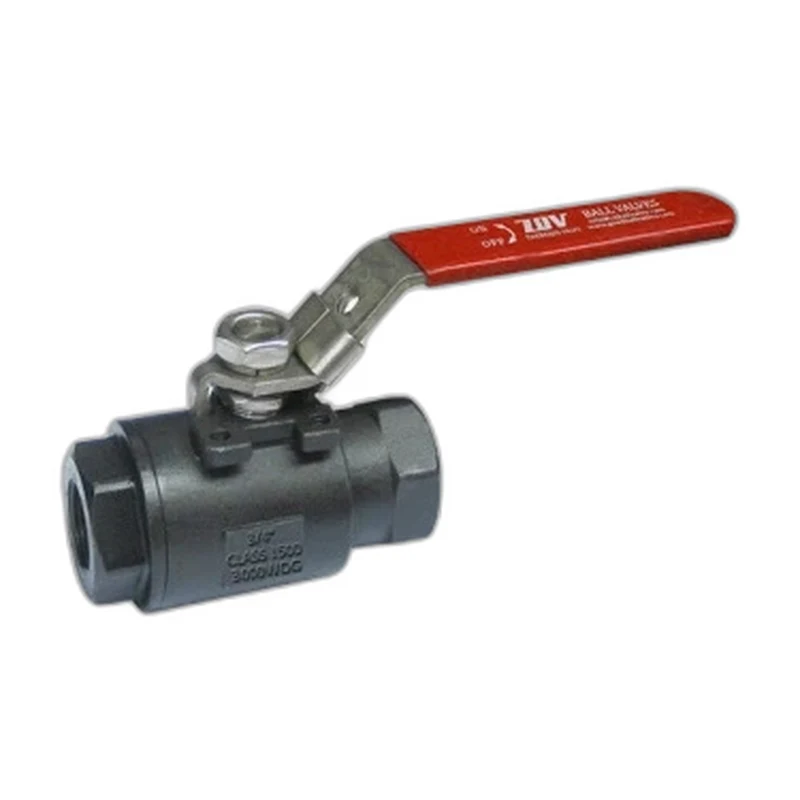

2 Piece Threaded Ball Valve 3600 PSI Class 1500
A two piece full port threaded ball valve, stainless or carbon steel, 1/4 inch to 2 inch, Class 1500 / 3000 PSI WOG.
Size1/4 inch to 2 inchPressureClass 1500 / 3000 PSI WOGPortFull PortBodyTwo Piece
The 2 Piece Threaded Ball Valve Class 1500 handles higher pressure isolation for instrument, hydraulic and process lines. The full port floating ball gives unobstructed flow and tight shut-off on Delrin or PEEK seats. Built to ASME B16.34 and MSS SP-110 in A216 WCB or A351 CF8M, it is rated to 3000 PSI WOG (Class 1500) from 1/4 inch to 2 inch.
Specifications
Size Range
1/4 inch to 2 inch
Pressure Rating
Class 1500 / 3000 PSI WOG
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT (ASME B1.20.1)
Body Material
A216 WCB / A351 CF8M
Ball / Disc / Wedge Material
A182 F316
Seat Material
Delrin / PEEK
Stem Material
A182 F316
Port Type
Full Port
Body Style
Two Piece
Operation
Lever
Applications
Hydraulic, Instrument, Process, General Service
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Class 1500 high pressure rating
- Full port floating ball
- Delrin / PEEK seats
- Threaded NPT ends
- Stainless or carbon steel
Options
- Body: WCB or CF8M
- Seat: Delrin or PEEK
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598
Dimensions
| Size | 1/4” to 4” |
| Port | Full Port |
| Pressure | 2000PSI 138 BAR |
| Body/Cap | ASTM A216 WCB/ ASTM A351 CF8M |
| Ball / Stem | SS Trim SS420/SS304/SS316 |
| Seat | RPTFE / MPTFE |
| Max Temp.: | 232 ° |
| End | ASME B1.20.1(NPT)/DIN 259/DIN2999/BSP/PT |
| Design standard | BS EN ISO 17292 ( BS 5351), ASME B16.34, API 608,BS EN ISO 12516,BS EN 1983 |
| End Connection | Screed/Threaded End to ASME B1.20.1, Socket Weld End to ASME B16.11, Butt Weld End to ASME B16.25 |
| Ispection& Testing Stardard | API 598, BS EN ISO 12266-I(BS 6755 -I) |
| Manufacturing Size Range | 1/2” 3/4” 1”1-1/2” 2” |
| Pressure Rating of Valve | 1500PSI/2000PSI |
| Option | Reduced Port /Full Port Blow-out-Proof Stem SAE Thread |
