2 Valve Manifold

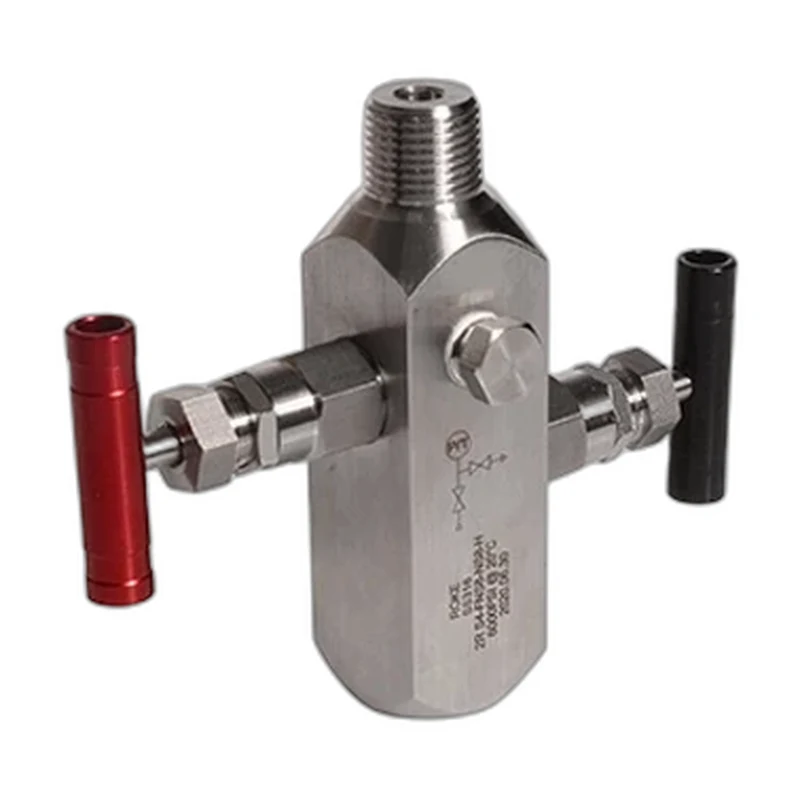

A two-valve instrument manifold combining a block and bleed function for direct-mount static-pressure transmitters.
The two-valve manifold integrates an isolation needle and a vent/calibration port into a single compact body, giving instrument technicians a clean way to isolate and bleed a static-pressure transmitter. Each needle seats a hardened tapered tip into a small metal seat for tight, repeatable shut-off and the fine throttling control that pressure-instrument hook-ups demand. Built for direct or remote mounting, it keeps impulse lines short and simplifies commissioning and recalibration of gauges and transmitters.
Specifications
Key Features
- Block-and-bleed function in one compact body
- Fine throttling via tapered needle and small metal seat
- Direct or remote transmitter mounting
- Non-rotating needle tip protects the seat
- Gland packing rated for instrument service
Options
- Direct or remote mount
- Vent or calibration port
- Panel mounting bracket
- Oxygen-clean preparation
Standards & Certifications
- ASME B16.34
- API 598
- MSS SP-99
