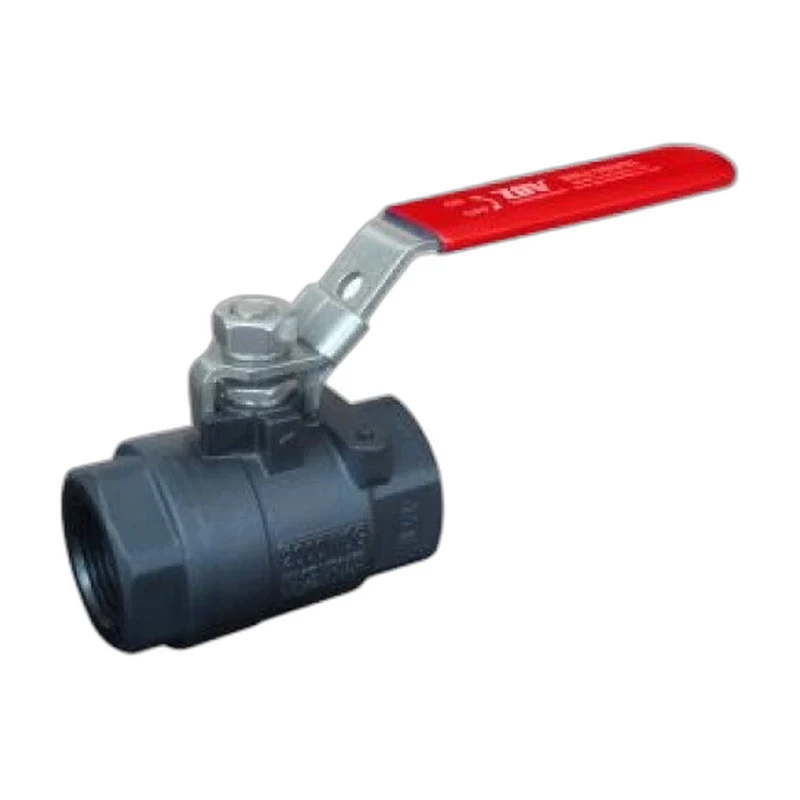

2PC 2000 PSI Seal Welded Ball Valves Firesafe
A fire-safe, seal-welded two-piece ball valve rated to 2000 PSI WOG for general and oil & gas service.
This two piece ZQV ball valve is engineered for high-pressure isolation across a 1/4" to 2" size range, with a maximum allowable operating pressure of 2000 PSI WOG. The ASTM A351 CF8M (stainless) / ASTM A216 WCB (carbon steel) body carries an ASTM A182 F316 stainless steel ball and ASTM A182 F316 stainless steel stem, sealing against Reinforced PTFE (RPTFE) seats for reliable, low-torque quarter-turn operation. Threaded NPT (ASME B1.20.1) connections and a full port bore make it well suited to general service, air, water and oil & gas duty. The seal-welded body construction eliminates external leak paths for added integrity under pressure. A fire-safe design adds secondary metal-to-metal sealing for security during a fire event.
Specifications
Key Features
- Two Piece body construction
- Quarter-turn lever operation
- Rated to 2000 PSI WOG
- ASTM A182 F316 stainless steel ball with Reinforced PTFE (RPTFE) seats
- Threaded NPT (ASME B1.20.1)
- Seal-welded body for leak-tight integrity
- Fire-safe design per API 607
Options
- Multiple body material options
- Fire-safe option
Standards & Certifications
- Designed to ASME B16.34, MSS SP-110
- Tested to MSS SP-72, API 598
- Fire-safe tested to API 607
Dimensions
| Port: | Full Port |
| Size: | 1/2″ to 2″ |
| Pressure: | 3600PSI/1500LB |
| Body: | Carbon Steel |
| Seat: | RPTEF/MPTFE |
| Max Temp: | 450ºF 232ºC |
| Ends: | ASME B1.20.1(NPT) / DIN 259 / DIN2999 / ISO228 / BSP / PT |
| Design Standard: | API598/ASME B16.34 |
| Test Standard: | NACE MR-0175(FIRE SAFE) |
| Features: | 2-Piece Investment Casting Body |
| Seal-Weld Body | |
| Adjustable Packing Gland | |
| Blow-out-Proof Stem | |
| Lockable Lever Handle | |
| 150PSI Saturated Steam | |
| 250PSI Steam Service (Multi-Seal Seat) | |
| Spring Return Oval Handle | |
| Optional: | Lockable Lever Handle |
| Spring Return Handle | |
| Oval Handle | |
| Metal Seat | |
| SAE Thread |
| Item | PART | MATERIAL |
| 1 | BODY | A216 WCB |
| 2 | SEAT | DELRIN |
| 3 | BALL | A182 F316 |
| 4 | P-RING | V-ITON |
| 5 | BODY SEAL | GRAHITE |
| 6 | CAP | A216 WCB |
| 7 | STEM | RPTFE |
| 8 | THRUST WASHER | RPTFE |
| 9 | PACKING | SS |
| 10 | GLAND | SS |
| 11 | PIN COVER | A193 B7 |
| 12 | PIN NUT | SS201 |
| 13 | HANDLE | SS |
| 14 | WASHER | SS |
| 15 | NUT | A2-70 |
