PRPLZ098

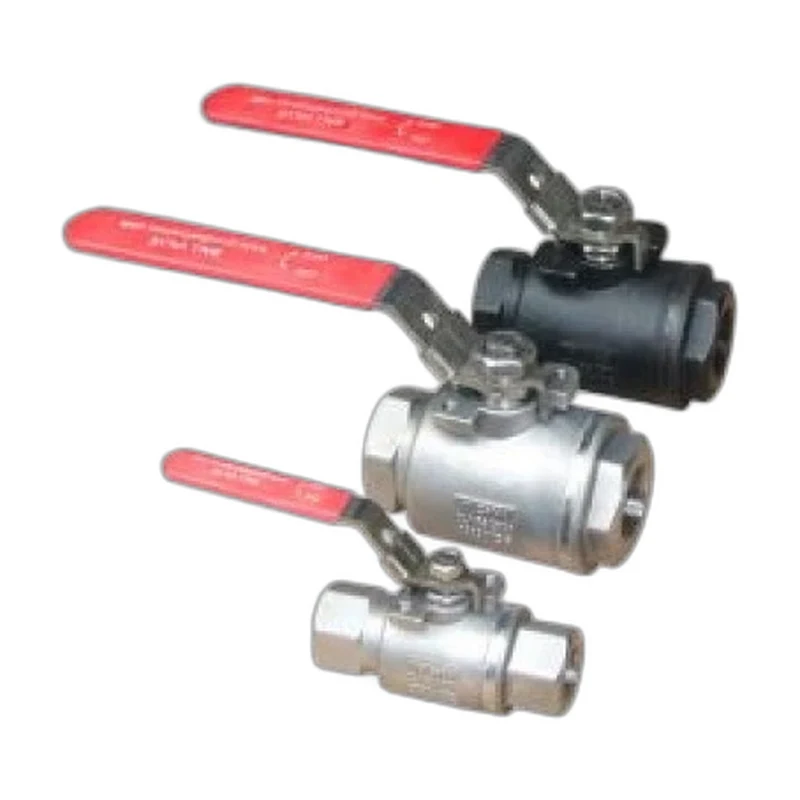

2PC 3000 PSI Stainless Steel Screwed Ball Valve
A two piece full port stainless steel screwed ball valve, 1/4 inch to 2 inch, rated 3000 PSI WOG.
Size1/4 inch to 2 inchPressure3000 PSI WOGPortFull PortBodyTwo Piece
The 2PC 3000 PSI Stainless Steel Screwed Ball Valve offers corrosion resistant CF8M construction for chemical, water and high pressure process duties. The full port floating ball delivers low pressure drop and tight shut-off on Delrin or PEEK seats. Built to ASME B16.34 and MSS SP-110, it is rated to 3000 PSI WOG from 1/4 inch to 2 inch with threaded NPT ends.
Specifications
Size Range
1/4 inch to 2 inch
Pressure Rating
3000 PSI WOG
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT (ASME B1.20.1)
Body Material
A351 CF8M (stainless steel)
Ball / Disc / Wedge Material
A182 F316
Seat Material
Delrin / PEEK
Stem Material
A182 F316
Port Type
Full Port
Body Style
Two Piece
Operation
Lever
Applications
Chemical, Water, Process, General Service
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Corrosion resistant stainless body
- Full port floating ball
- 3000 PSI WOG rating
- Delrin / PEEK seats
- Threaded NPT ends
Options
- Seat: Delrin or PEEK
- Trim: 316 stainless
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598
Dimensions
| Item | PART | MATERIAL |
| 1 | BODY | A315 CF8M(SS316) |
| 2 | BALL | A315 CF8M(SS316) |
| 3 | END CAP | A315 CF8M(SS316) |
| 4 | SEAT | RPTFE |
| 5 | BODY SEAL | RPTFE |
| 6 | STEM | SS316/SS304 |
| 7 | SETM SEAL | PTFE |
| 8 | HANDLE | SS201 |
| 9 | HANDLE COVER | PVC |
| 10 | THRUST WASHER | RPTFE |
| 11 | GLAND NUT | SS304 |
| 12 | HANDLE WASHER | SS304 |
| 13 | HANDLE NUT | A2-70(SS) |
| 14 | LOCKING PAD | SS201 |
| SIZE | PRESSURE | A | B | C | D | KGS |
| 1/4″ | 2000PSI | 55 | 11 | 53 | 90 | 0.29 |
| 3/8″ | 2000PSI | 55 | 12 | 53 | 90 | 0.29 |
| 1/2″ | 2000PSI | 62 | 15 | 58 | 100 | 0.38 |
| 3/4″ | 2000PSI | 78 | 20 | 63 | 110 | 0.68 |
| 1″ | 2000PSI | 90 | 25 | 71 | 120 | 1.05 |
| 1-1/4″ | 2000PSI | 98 | 32 | 78 | 160 | 1.50 |
| 1-1/2″ | 2000PSI | 118 | 38 | 92 | 160 | 2.50 |
| 2″ | 2000PSI | 136 | 50 | 106 | 175 | 3.60 |
| 2-1/2″ | 2000PSI | 156 | 65 | 133 | 220 | 4.80 |
| 3″ | 2000PSI | 178 | 80 | 140 | 235 | 6.80 |
| 4″ | 2000PSI | 226 | 100 | 160 | 358 | 13.50 |
