Purple Valves
PRPLZ099

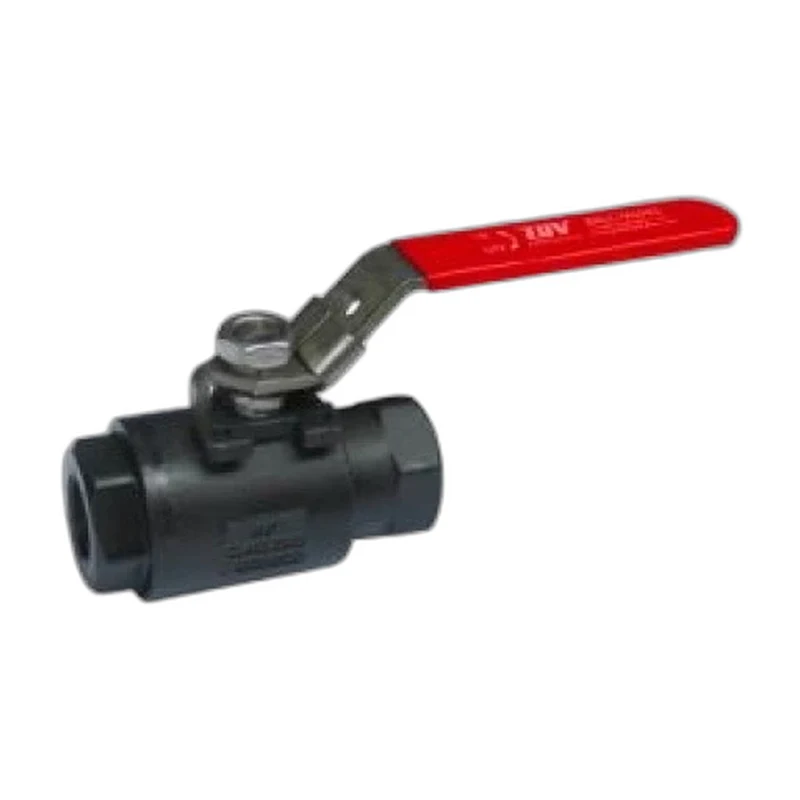

2PC Female Threaded 6000 PSI Ball Valve
A two piece full port female-threaded high pressure ball valve, stainless or carbon steel, 1/4 inch to 2 inch.
Size1/4 inch to 2 inchPressureUp to 6000 PSI WOGPortFull PortBodyTwo Piece
The 2PC Female Threaded 6000 PSI Ball Valve is built for high pressure isolation on hydraulic and process lines, with female NPT ends and a full port floating ball for tight shut-off on Delrin or PEEK seats. Built to ASME B16.34 and MSS SP-110 in A216 WCB or A351 CF8M, it suits demanding general service, air, water and oil and gas duties from 1/4 inch to 2 inch.
Specifications
Size Range
1/4 inch to 2 inch
Pressure Rating
Up to 6000 PSI WOG
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Female Threaded NPT (ASME B1.20.1)
Body Material
A216 WCB / A351 CF8M
Ball / Disc / Wedge Material
A182 F316
Seat Material
Delrin / PEEK
Stem Material
A182 F316
Port Type
Full Port
Body Style
Two Piece
Operation
Lever
Applications
Hydraulic, Process, Air, Water, Oil and Gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- High pressure rating to 6000 PSI
- Female NPT ends
- Full port floating ball
- Delrin / PEEK seats
- Stainless or carbon steel
Options
- Body: WCB or CF8M
- Seat: Delrin or PEEK
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598
Dimensions
| Port: | Full Port |
| Size: | 1/2″ to 2″ |
| Pressure: | 3600PSI/1500LB |
| Body: | Carbon Steel |
| Seat: | RPTEF/MPTFE |
| Max Temp: | 450ºF 232ºC |
| Ends: | ASME B1.20.1(NPT) / DIN 259 / DIN2999 / ISO228 / BSP / PT |
| Design Standard: | API598/ASME B16.34 |
| Test Standard: | NACE MR-0175(FIRE SAFE) |
| Features: | 2-Piece Investment Casting Body |
| Seal-Weld Body | |
| Adjustable Packing Gland | |
| Blow-out-Proof Stem | |
| Lockable Lever Handle | |
| 150PSI Saturated Steam | |
| 250PSI Steam Service (Multi-Seal Seat) | |
| Spring Return Oval Handle | |
| Optional: | Lockable Lever Handle |
| Spring Return Handle | |
| Oval Handle | |
| Metal Seat | |
| SAE Thread |
| Item | PART | MATERIAL |
| 1 | BODY | A216 WCB |
| 2 | SEAT | DELRIN |
| 3 | BALL | A182 F316 |
| 4 | P-RING | V-ITON |
| 5 | BODY SEAL | GRAHITE |
| 6 | CAP | A216 WCB |
| 7 | STEM | RPTFE |
| 8 | THRUST WASHER | RPTFE |
| 9 | PACKING | SS |
| 10 | GLAND | SS |
| 11 | PIN COVER | A193 B7 |
| 12 | PIN NUT | SS201 |
| 13 | HANDLE | SS |
| 14 | WASHER | SS |
| 15 | NUT | A2-70 |
