Purple Valves
PRPLZ100

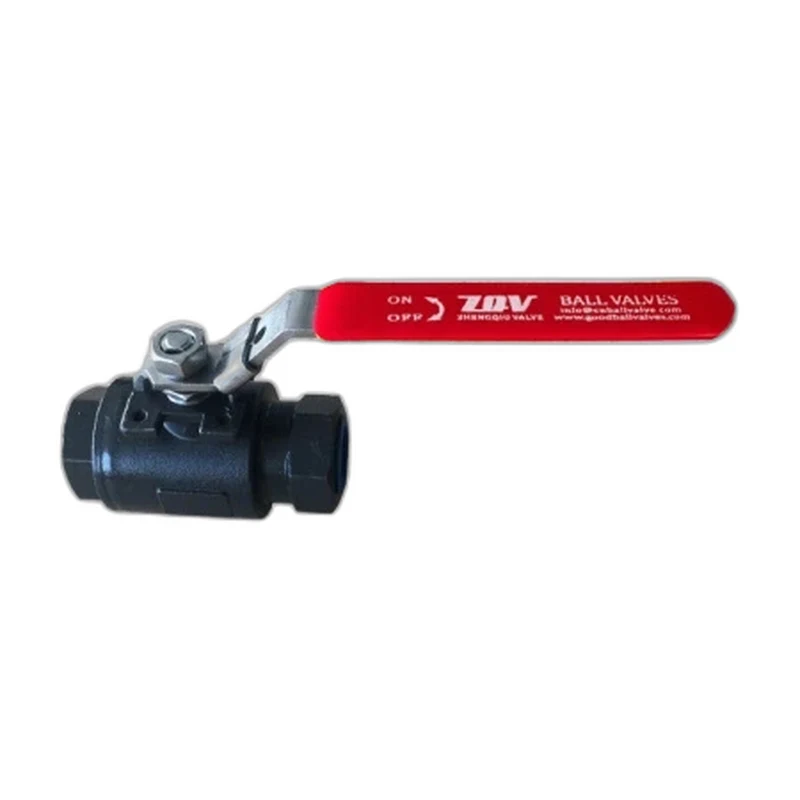

2PC Fire-Safe Class 1500 Threaded Ball Valve
A fire-safe two piece full port threaded ball valve, stainless or carbon steel, 1/4 inch to 2 inch, Class 1500 / 3000 PSI WOG.
Size1/4 inch to 2 inchPressureClass 1500 / 3000 PSI WOGPortFull PortBodyTwo Piece
The 2PC Fire-Safe Class 1500 Threaded Ball Valve adds fire-safe sealing for hydrocarbon and high risk duties, maintaining isolation even if soft seats are burned out. The full port floating ball seals on Delrin or PEEK seats with secondary metal-to-metal backup. Built to ASME B16.34 and MSS SP-110 in A216 WCB or A351 CF8M, it is rated to 3000 PSI WOG (Class 1500) from 1/4 inch to 2 inch.
Specifications
Size Range
1/4 inch to 2 inch
Pressure Rating
Class 1500 / 3000 PSI WOG
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT (ASME B1.20.1)
Body Material
A216 WCB / A351 CF8M
Ball / Disc / Wedge Material
A182 F316
Seat Material
Delrin / PEEK (fire-safe)
Stem Material
A182 F316
Port Type
Full Port
Body Style
Two Piece
Operation
Lever
Applications
Oil and Gas, Hydrocarbon, Process, General Service
Design Standard
ASME B16.34, MSS SP-110, API 607
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Fire-safe to API 607
- Class 1500 high pressure rating
- Full port floating ball
- Secondary metal seating backup
- Threaded NPT ends
Options
- Body: WCB or CF8M
- Seat: Delrin or PEEK (fire-safe)
Standards & Certifications
- ASME B16.34
- API 607 Fire-Safe
- MSS SP-110
Dimensions
| Port: | Full Port |
| Size: | 1/2″ to 2″ |
| Pressure: | 3600PSI/1500LB |
| Body: | Carbon Steel |
| Seat: | RPTEF/MPTFE |
| Max Temp: | 450ºF 232ºC |
| Ends: | ASME B1.20.1(NPT) / DIN 259 / DIN2999 / ISO228 / BSP / PT |
| Design Standard: | API598/ASME B16.34 |
| Test Standard: | NACE MR-0175(FIRE SAFE) |
| Features: | 2-Piece Investment Casting Body |
| Seal-Weld Body | |
| Adjustable Packing Gland | |
| Blow-out-Proof Stem | |
| Lockable Lever Handle | |
| 150PSI Saturated Steam | |
| 250PSI Steam Service (Multi-Seal Seat) | |
| Spring Return Oval Handle | |
| Optional: | Lockable Lever Handle |
| Spring Return Handle | |
| Oval Handle | |
| Metal Seat | |
| SAE Thread |
| Item | PART | MATERIAL |
| 1 | BODY | A216 WCB |
| 2 | SEAT | DELRIN |
| 3 | BALL | A182 F316 |
| 4 | P-RING | V-ITON |
| 5 | BODY SEAL | GRAHITE |
| 6 | CAP | A216 WCB |
| 7 | STEM | RPTFE |
| 8 | THRUST WASHER | RPTFE |
| 9 | PACKING | SS |
| 10 | GLAND | SS |
| 11 | PIN COVER | A193 B7 |
| 12 | PIN NUT | SS201 |
| 13 | HANDLE | SS |
| 14 | WASHER | SS |
| 15 | NUT | A2-70 |
