Purple Valves
PRPLZ075

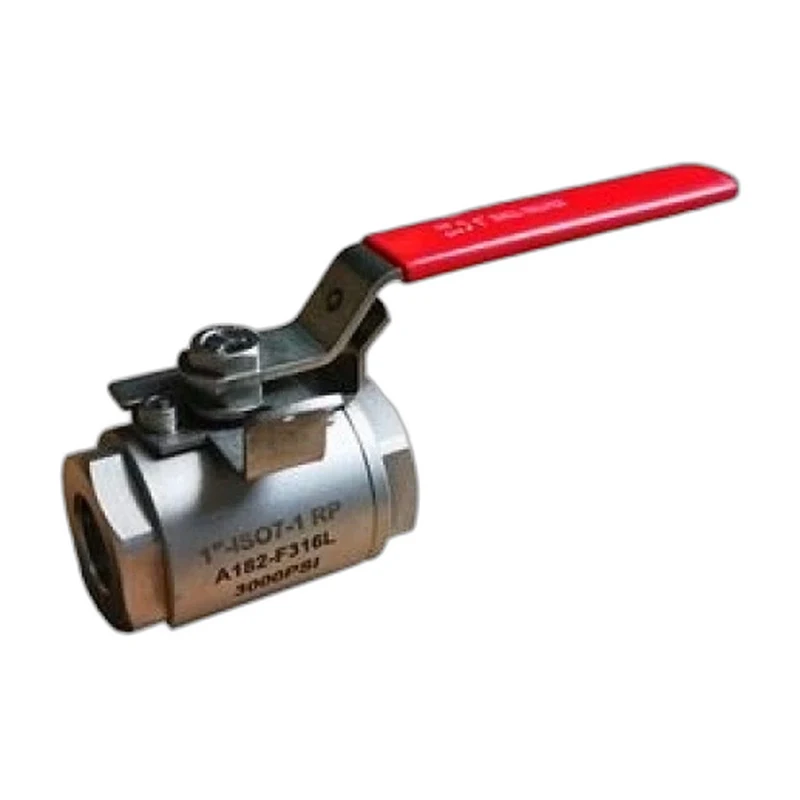

2PC Forged Steel 800LB Ball Valve
A two piece forged steel ball valve with NPT or EUE ends, 1/4 inch to 4 inch, rated 800LB / 1500LB / 2500LB.
Size1/4 inch to 4 inchPressure800LB / 1500LB / 2500LBPortFull Port / Reduced PortBodyTwo Piece
The 2PC Forged Steel 800LB Ball Valve uses a forged A105 or stainless body for high pressure isolation in oilfield and process service, with threaded NPT or EUE API 5B ends. The floating ball seals on RPTFE, Delrin or PEEK seats for dependable shut-off. Built to ASME B16.34, API 607 and API 608, it is offered from 1/4 inch to 4 inch in 800LB, 1500LB and 2500LB classes, full or reduced port.
Specifications
Size Range
1/4 inch to 4 inch
Pressure Rating
800LB / 1500LB / 2500LB
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT (ASME B1.20.1), EUE API 5B
Body Material
ASTM A105 / A182 F316 / A182 F304 (forged steel)
Ball / Disc / Wedge Material
A182 F316
Seat Material
RPTFE / Delrin / PEEK
Stem Material
A182 F316
Port Type
Full Port / Reduced Port
Body Style
Two Piece
Operation
Lever
Applications
Oilfield, Oil and Gas, Process, General Service
Design Standard
ASME B16.34, API 607, API 608
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Forged steel body for strength
- NPT or EUE API 5B ends
- Fire-safe to API 607
- RPTFE / Delrin / PEEK seats
- Full or reduced port
Options
- Body: A105, F304 or F316
- Ends: NPT or EUE
- Class: 800LB, 1500LB or 2500LB
Standards & Certifications
- ASME B16.34
- API 607 Fire-Safe
- API 608
