PRPLZ101

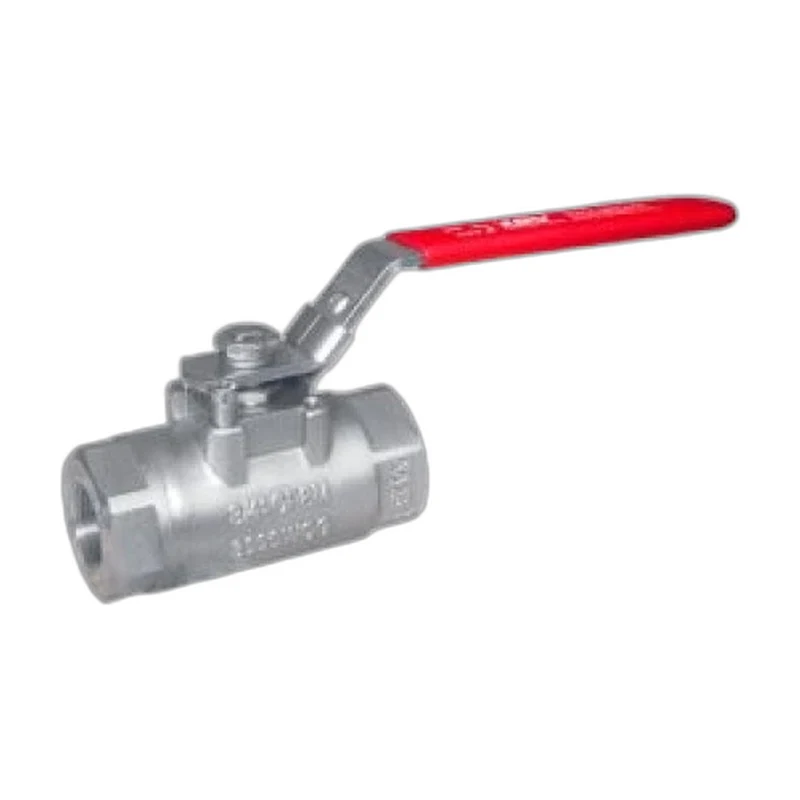

2PC Investment Casting Threaded Ball Valve 3000 PSI
A two piece investment cast full port threaded ball valve, stainless or carbon steel, 1/4 inch to 2 inch, 3000 PSI WOG.
Size1/4 inch to 2 inchPressure3000 PSI WOGPortFull PortBodyTwo Piece
The 2PC Investment Casting Threaded Ball Valve uses a precision investment cast body for a clean finish and consistent quality, suiting general service, air, water and oil and gas. The full port floating ball seals on Delrin or PEEK seats for dependable shut-off. Built to ASME B16.34 and MSS SP-110 in A216 WCB or A351 CF8M, it is rated to 3000 PSI WOG from 1/4 inch to 2 inch with threaded NPT ends.
Specifications
Size Range
1/4 inch to 2 inch
Pressure Rating
3000 PSI WOG
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT (ASME B1.20.1)
Body Material
A216 WCB / A351 CF8M
Ball / Disc / Wedge Material
A182 F316
Seat Material
Delrin / PEEK
Stem Material
A182 F316
Port Type
Full Port
Body Style
Two Piece
Operation
Lever
Applications
General Service, Air, Water, Oil and Gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Precision investment cast body
- Full port floating ball
- 3000 PSI WOG rating
- Delrin / PEEK seats
- Threaded NPT ends
Options
- Body: WCB or CF8M
- Seat: Delrin or PEEK
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598
Dimensions
| Item | PART | MATERIAL |
| 1 | BODY | A315 CF8M(SS316) |
| 2 | SEAT | DELRIN |
| 3 | BALL | A182 |
| 4 | P-RING | VINTON |
| 5 | BODY SEAL | GRAPHITE |
| 6 | CAP | A315 CF8M(SS316) |
| 7 | STEM | A182 |
| 8 | THRUST WASHER | RPTFE |
| 9 | PACKING | RPTFE |
| 10 | GLAND | SS |
| 11 | PIN COVER | SS |
| 12 | PIN NUT | A193 |
| 13 | HANDLE | SS201 |
| 14 | WASHER | SS |
| 15 | NUT | A2-70 |
| SIZE | PRESSURE | L | H | L1 | KGS |
| 1/4″ | 3000PSI | 98 | 60 | 147 | 0.95 |
| 3/8″ | 3000PSI | 98 | 60 | 147 | 0.94 |
| 1/2″ | 3000PSI | 98 | 60 | 147 | 0.86 |
| 3/4″ | 3000PSI | 108 | 71 | 190 | 1.50 |
| 1″ | 3000PSI | 137 | 88 | 190 | 2.50 |
| 1-1/4″ | 3000PSI | 137 | 94 | 228 | 3.30 |
| 1-1/2″ | 3000PSI | 160 | 115 | 268 | 5.55 |
| 2″ | 3000PSI | 160 | 138 | 370 | 7.60 |
| 2-1/2″ | 3000PSI | 165 | 140 | 400 | 8.60 |
| 3″ | 3000PSI | 180 | 152 | 415 | 13.70 |
| 4″ | 3000PSI | 200 | 162 | 450 | 18.90 |
