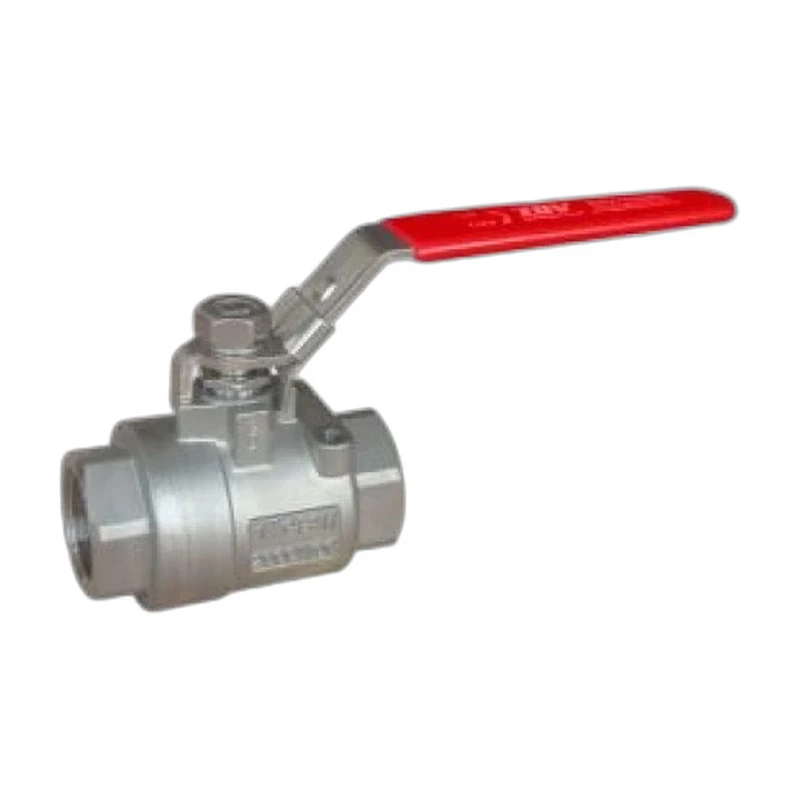

2PC Seal Welded Full Port Ball Valves 2000PSI
A full-port seal-welded two-piece ball valve rated to 2000 PSI WOG for unrestricted flow in general service.
This two piece ZQV ball valve is engineered for high-pressure isolation across a 1/4" to 4" size range, with a maximum allowable operating pressure of 2000 PSI WOG. The ASTM A351 CF8M (stainless) / ASTM A216 WCB (carbon steel) body carries an ASTM A182 F316 stainless steel ball and ASTM A182 F316 stainless steel stem, sealing against Reinforced PTFE (RPTFE) seats for reliable, low-torque quarter-turn operation. Threaded NPT (ASME B1.20.1) connections and a full port bore make it well suited to general service, air, water and oil & gas duty. The seal-welded body construction eliminates external leak paths for added integrity under pressure.
Specifications
Key Features
- Two Piece body construction
- Quarter-turn lever operation
- Rated to 2000 PSI WOG
- ASTM A182 F316 stainless steel ball with Reinforced PTFE (RPTFE) seats
- Threaded NPT (ASME B1.20.1)
- Seal-welded body for leak-tight integrity
Options
- Multiple body material options
Standards & Certifications
- Designed to ASME B16.34, MSS SP-110
- Tested to MSS SP-72, API 598
Dimensions
| No. | Part Name | Material |
| 1 | Cap | A216 WCB |
| 2 | Body | A216 WCB |
| 3 | Seat | RPTFE |
| 4 | Ball | A182 F316 |
| 5 | Stem | A182 F316 |
| 6 | Stem Gasket | RPTFE |
| 7 | Packing | Graphite |
| 8 | Gland | ss |
| 9 | handle | ss+pvc |
| 10 | Spring Gasket | ss |
| 11 | Nut | A2-70 |
