Purple Valves
PRPLZ016

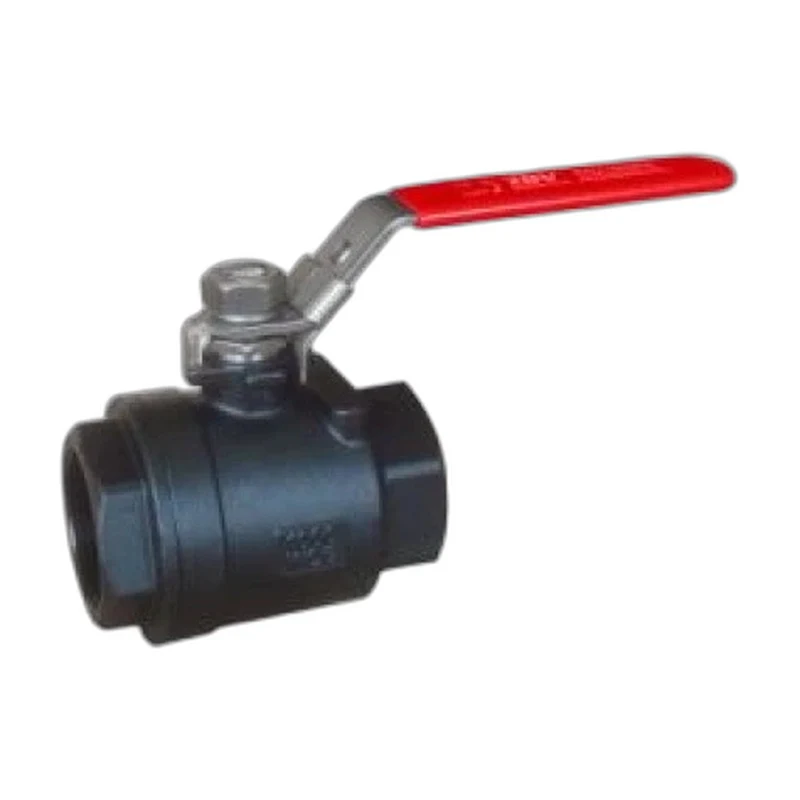

2PC Threaded Full Port Ball Valve PN63
A two-piece full-port threaded ball valve rated for PN63 service with a 1000 PSI WOG capacity.
Size1/4" to 4"Pressure1000 PSI (WOG)PortFull PortBodyTwo Piece
CategoriesBall Valves
This two-piece full-port ball valve is configured for threaded NPT installation and steady isolation duty up to 1000 PSI WOG. Its full bore keeps flow resistance low across the 1/4" to 4" range, and the stainless and carbon steel body options suit a broad spread of media. RPTFE seats provide a tight, repeatable seal for general service applications.
Specifications
Size Range
1/4" to 4"
Pressure Rating
1000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded ASME B1.20.1 NPT
Body Material
A351 CF8M / A216 WCB
Ball / Disc / Wedge Material
A182 F316
Seat Material
RPTFE
Stem Material
A182 F316
Port Type
Full Port
Body Style
Two Piece
Operation
Lever, Gearbox
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34 , MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Reliable bubble-tight shut-off
- Two Piece body construction
- Full Port bore
- Blow-out proof stem with anti-static device
- Fire-safe and corrosion-resistant materials
Options
- Range of seat materials (RPTFE, PTFE, PEEK, Delrin)
- Lever, gearbox, pneumatic or electric actuation
- Locking handle and stem extensions
- Oxygen-cleaned and special-service preparation
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598 Tested
