PRPLZ143

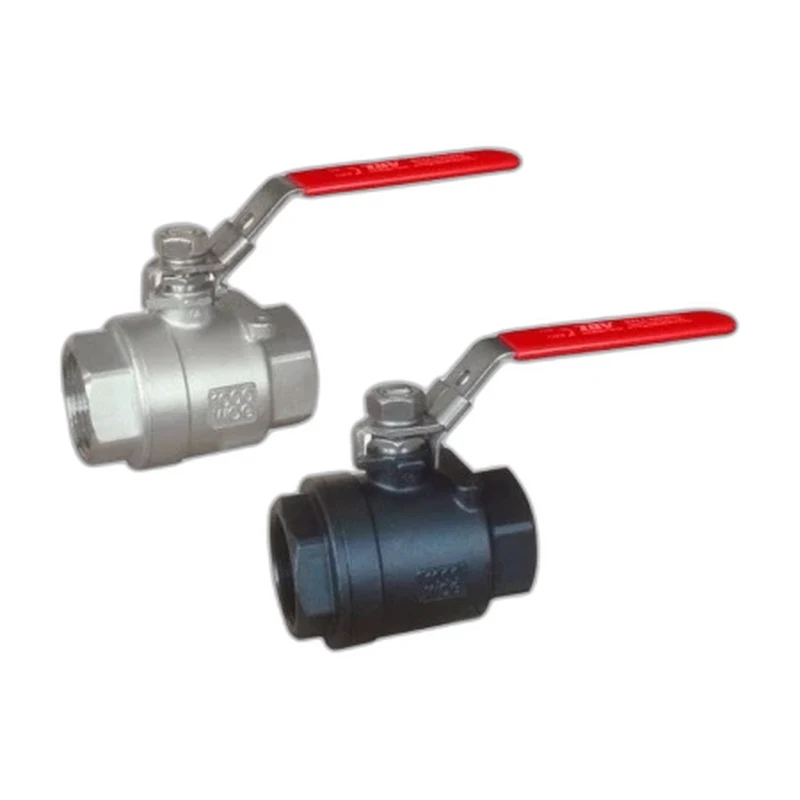

2PC Threaded Stainless Steel Ball Valve 1000 WOG
A corrosion-resistant two-piece stainless steel ball valve with threaded ends, rated to 1000 PSI WOG.
Size1/4" to 4"Pressure1000 PSI (WOG)PortFull PortBodyTwo Piece
Built around a stainless steel body and trim, this two-piece threaded ball valve resists corrosion while delivering reliable on/off isolation up to 1000 PSI WOG. The full-port bore minimises restriction across the 1/4" to 4" size range, and the NPT threaded ends make for straightforward installation. RPTFE seats ensure a dependable seal in water, air and light chemical service.
Specifications
Size Range
1/4" to 4"
Pressure Rating
1000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded ASME B1.20.1 NPT
Body Material
A351 CF8M / A216 WCB
Ball / Disc / Wedge Material
A182 F316
Seat Material
RPTFE
Stem Material
A182 F316
Port Type
Full Port
Body Style
Two Piece
Operation
Lever, Gearbox
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34 , MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Reliable bubble-tight shut-off
- Two Piece body construction
- Full Port bore
- Blow-out proof stem with anti-static device
- Fire-safe and corrosion-resistant materials
Options
- Range of seat materials (RPTFE, PTFE, PEEK, Delrin)
- Lever, gearbox, pneumatic or electric actuation
- Locking handle and stem extensions
- Oxygen-cleaned and special-service preparation
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598 Tested
Dimensions
| Item | PART | MATERIAL |
| 1 | BODY | A315 CF8M(SS316) |
| 2 | BALL | A315 CF8M(SS316) |
| 3 | END CAP | A315 CF8M(SS316) |
| 4 | SEAT | RPTFE |
| 5 | BODY SEAL | RPTFE |
| 6 | STEM | SS316/SS304 |
| 7 | SETM SEAL | PTFE |
| 8 | HANDLE | SS201 |
| 9 | HANDLE COVER | PVC |
| 10 | THRUST WASHER | RPTFE |
| 11 | GLAND NUT | SS304 |
| 12 | HANDLE WASHER | SS304 |
| 13 | HANDLE NUT | A2-70(SS) |
| 14 | LOCKING PAD | SS201 |
| SIZE | PRESSURE | A | B | C | D | KGS |
| 1/4″ | 2000PSI | 55 | 11 | 53 | 90 | 0.29 |
| 3/8″ | 2000PSI | 55 | 12 | 53 | 90 | 0.29 |
| 1/2″ | 2000PSI | 62 | 15 | 58 | 100 | 0.38 |
| 3/4″ | 2000PSI | 78 | 20 | 63 | 110 | 0.68 |
| 1″ | 2000PSI | 90 | 25 | 71 | 120 | 1.05 |
| 1-1/4″ | 2000PSI | 98 | 32 | 78 | 160 | 1.50 |
| 1-1/2″ | 2000PSI | 118 | 38 | 92 | 160 | 2.50 |
| 2″ | 2000PSI | 136 | 50 | 106 | 175 | 3.60 |
| 2-1/2″ | 2000PSI | 156 | 65 | 133 | 220 | 4.80 |
| 3″ | 2000PSI | 178 | 80 | 140 | 235 | 6.80 |
| 4″ | 2000PSI | 226 | 100 | 160 | 358 | 13.50 |
