Purple Valves
PRPLZ017

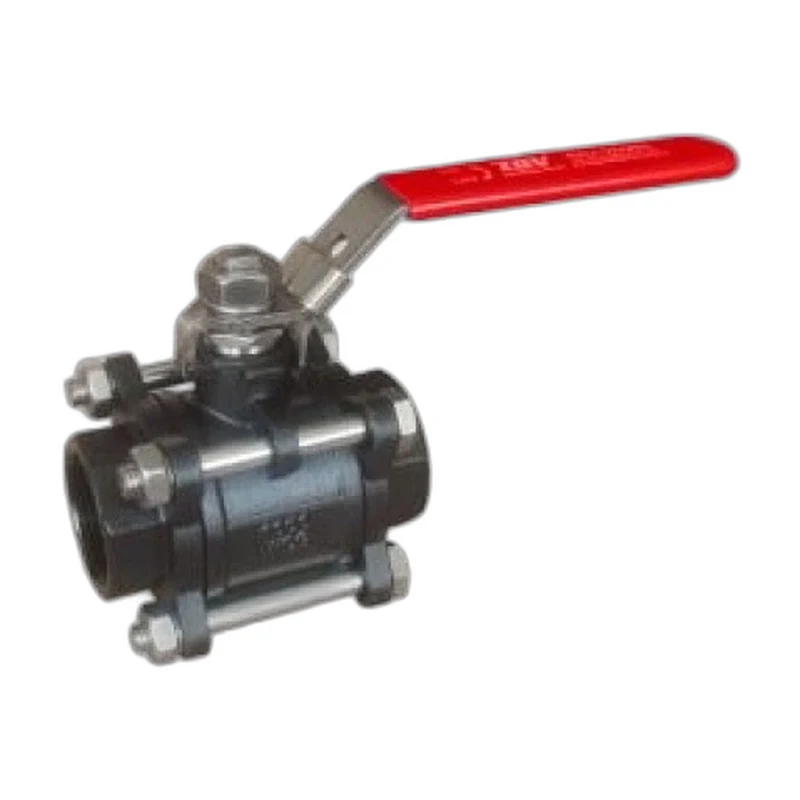

3 Piece Full Port Ball Valve 1000PSI
A serviceable three-piece full-port ball valve rated to 1000 PSI with threaded, socket-weld and butt-weld end options.
Size1/4" to 4"Pressure1000 PSI (WOG)PortFull PortBodyThree Piece
CategoriesBall Valves
The three-piece body of this full-port ball valve allows in-line maintenance without removing the valve from the pipework, making it ideal for systems that demand regular servicing. Rated to 1000 PSI WOG, it offers an unrestricted bore across the 1/4" to 4" range and accepts NPT, socket-weld or butt-weld connections. It is a versatile workhorse for air, water, oil and gas duties.
Specifications
Size Range
1/4" to 4"
Pressure Rating
1000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded ASME B1.20.1 NPT,SW,BW
Body Material
A351 CF8M / A216 WCB
Ball / Disc / Wedge Material
A182 F316
Seat Material
RPTFE
Stem Material
A182 F316
Port Type
Full Port
Body Style
Three Piece
Operation
Lever, Gearbox
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34 , MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Reliable bubble-tight shut-off
- Three Piece body construction
- Full Port bore
- Blow-out proof stem with anti-static device
- Fire-safe and corrosion-resistant materials
Options
- Range of seat materials (RPTFE, PTFE, PEEK, Delrin)
- Lever, gearbox, pneumatic or electric actuation
- Locking handle and stem extensions
- Oxygen-cleaned and special-service preparation
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598 Tested
