Purple Valves
PRPLZ077

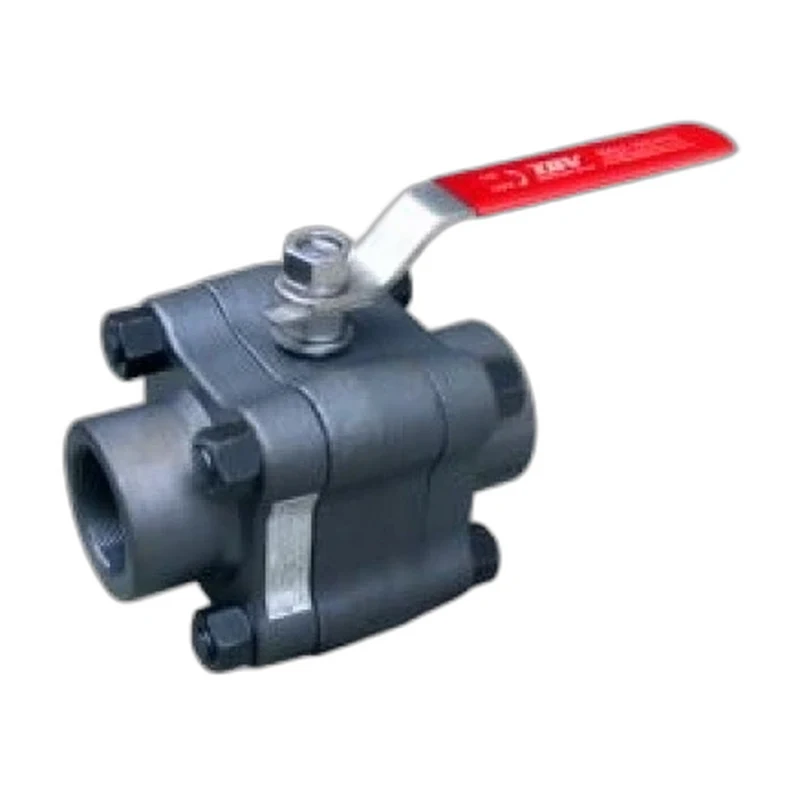

3 Piece Position Type Ball Valve A105
A three-piece A105 forged carbon steel position-type threaded ball valve for general and oilfield service.
Size1/4" to 4"PressureANSI Class 800 to 2500PortFull Port / Reduced PortBodyThree Piece
This three-piece position-type ball valve uses A105 forged carbon steel as its primary body material, with A182 F316 and F304 stainless options also available. Sized from 1/4 inch to 4 inch with NPT threaded ends, it offers full or reduced port flow paths and pressure classes from 800LB through 2500LB. The three-piece position-type body permits straightforward seat and seal servicing in the line, while RPTFE, Delrin or PEEK seats provide dependable sealing across air, water, oil and gas duties.
Specifications
Size Range
1/4" to 4"
Pressure Rating
ANSI Class 800 to 2500
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT ASME B1.20.1
Body Material
ASTM A105 / A182 F316 / A182 F304
Ball / Disc / Wedge Material
A182 F316 stainless
Seat Material
RPTFE / Delrin / PEEK
Stem Material
A182 F316 stainless
Port Type
Full Port / Reduced Port
Body Style
Three Piece
Operation
Manual lever / wrench
Applications
General service, air, water, oil and gas
Design Standard
ASME B16.34, API 607, API 608
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Three-piece position-type body for in-line servicing
- A105 forged carbon steel construction
- Pressure classes 800LB to 2500LB
- Full or reduced port options
- RPTFE, Delrin or PEEK seat materials
Options
- Full or reduced port
- Carbon or stainless body
- RPTFE, Delrin or PEEK seats
- Lever or gear operation
Standards & Certifications
- ASME B16.34
- API 607 fire-safe
- API 608
- MSS SP-72
- API 598
