Purple Valves
PRPLZ105

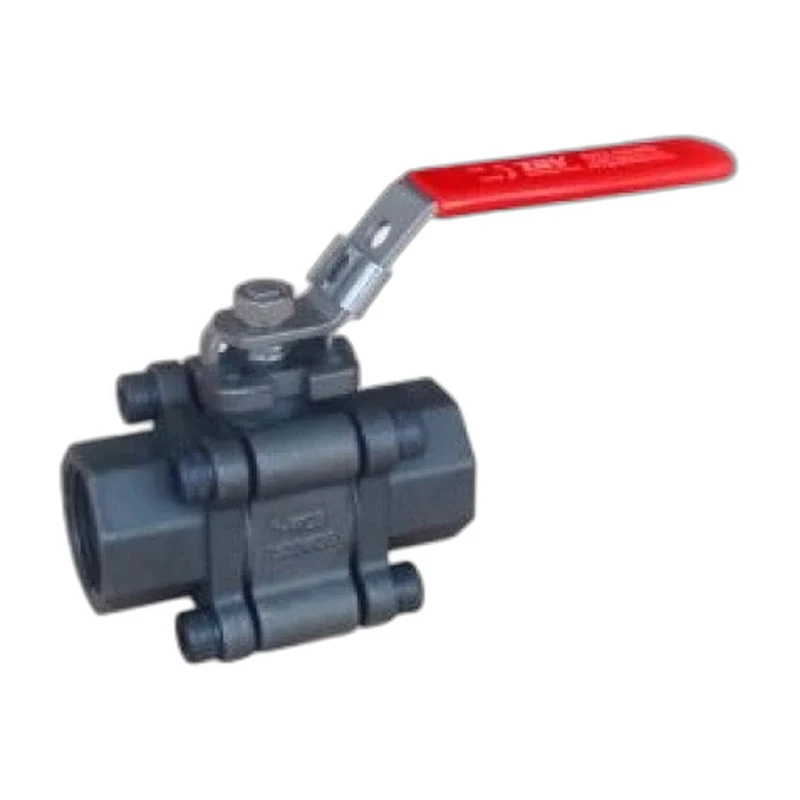

3PC Reduced Port Ball Valve 2000 PSI
A three piece reduced port threaded ball valve, stainless or carbon steel, 1/4 inch to 2 inch, 2000 PSI WOG.
Size1/4 inch to 2 inchPressure2000 PSI WOGPortReduced PortBodyThree Piece
The 3PC Reduced Port Ball Valve combines a swing-out three piece body with a reduced bore for economical, serviceable isolation. The floating ball seals on Delrin or PEEK seats and the three piece design allows in-line maintenance. Built to ASME B16.34 and MSS SP-110 in A216 WCB or A351 CF8M, it is rated to 2000 PSI WOG from 1/4 inch to 2 inch with threaded NPT ends.
Specifications
Size Range
1/4 inch to 2 inch
Pressure Rating
2000 PSI WOG
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT (ASME B1.20.1)
Body Material
A216 WCB / A351 CF8M
Ball / Disc / Wedge Material
A182 F316
Seat Material
Delrin / PEEK
Stem Material
A182 F316
Port Type
Reduced Port
Body Style
Three Piece
Operation
Lever
Applications
General Service, Air, Water, Oil and Gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Swing-out three piece body for in-line service
- Reduced port for economy
- Delrin / PEEK seats
- Threaded NPT ends
- Stainless or carbon steel
Options
- Body: WCB or CF8M
- Seat: Delrin or PEEK
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598
