Purple Valves
PRPLZ106

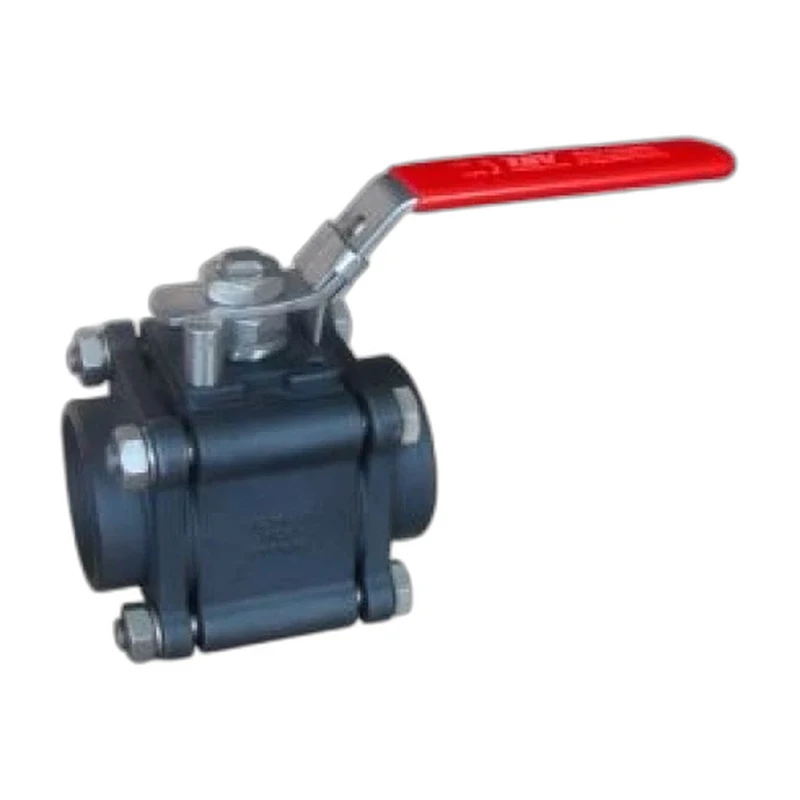

3PC Stainless Steel Threaded Ball Valve 2000PS
A three-piece stainless steel threaded ball valve rated to 2000 PSI WOG with an easily serviceable body.
Size1/4" to 2"Pressure2000 PSI WOGPortFull PortBodyThree Piece
This three piece ball valve is engineered for high-pressure isolation across a 1/4" to 2" size range, with a maximum allowable operating pressure of 2000 PSI WOG. The ASTM A351 CF8M stainless steel body carries an ASTM A182 F316 stainless steel ball and ASTM A182 F316 stainless steel stem, sealing against Delrin / PEEK seats for reliable, low-torque quarter-turn operation. Threaded NPT (ASME B1.20.1) connections and a full port bore make it well suited to general service, air, water and oil & gas duty.
Specifications
Size Range
1/4" to 2"
Pressure Rating
2000 PSI WOG
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT (ASME B1.20.1)
Body Material
ASTM A351 CF8M stainless steel
Ball / Disc / Wedge Material
ASTM A182 F316 stainless steel
Seat Material
Delrin / PEEK
Stem Material
ASTM A182 F316 stainless steel
Port Type
Full Port
Body Style
Three Piece
Operation
Lever
Applications
General service, air, water, oil & gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Three Piece body construction
- Quarter-turn lever operation
- Rated to 2000 PSI WOG
- ASTM A182 F316 stainless steel ball with Delrin / PEEK seats
- Threaded NPT (ASME B1.20.1)
Options
- Multiple body material options
Standards & Certifications
- Designed to ASME B16.34, MSS SP-110
- Tested to MSS SP-72, API 598
