Purple Valves
PRPLZ018

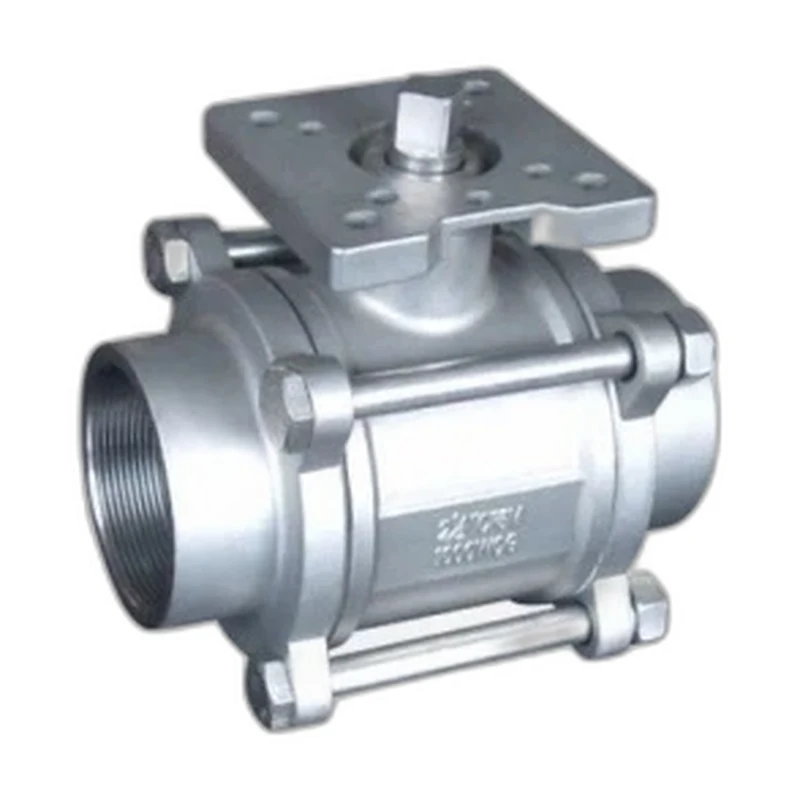

3PC Threaded Ball Valve with ISO5211 Mounting Pad
A three-piece full-port ball valve with an integral ISO 5211 mounting pad for direct actuator fitting.
Size1/4" to 4"Pressure1000 PSI (WOG)PortFull PortBodyThree Piece
CategoriesBall Valves
This three-piece ball valve includes an ISO 5211 mounting pad, allowing pneumatic or electric actuators to be bolted directly to the valve without additional brackets. Rated to 1000 PSI WOG, it offers a full-port bore across the 1/4" to 4" range and accepts NPT, socket-weld or butt-weld ends. The maintainable three-piece body makes it a practical choice for automated process isolation.
Specifications
Size Range
1/4" to 4"
Pressure Rating
1000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded ASME B1.20.1 NPT,SW,BW
Body Material
A351 CF8M / A216 WCB
Ball / Disc / Wedge Material
A182 F316
Seat Material
RPTFE
Stem Material
A182 F316
Port Type
Full Port
Body Style
Three Piece
Operation
Lever, Gearbox, Actuator-Ready
Applications
General Service, Air, Water, Oil & Gas
Design Standard
ASME B16.34 , MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Reliable bubble-tight shut-off
- Three Piece body construction
- Full Port bore
- Blow-out proof stem with anti-static device
- Fire-safe and corrosion-resistant materials
Options
- Range of seat materials (RPTFE, PTFE, PEEK, Delrin)
- Lever, gearbox, pneumatic or electric actuation
- Locking handle and stem extensions
- Oxygen-cleaned and special-service preparation
Standards & Certifications
- ASME B16.34
- MSS SP-110
- API 598 Tested
