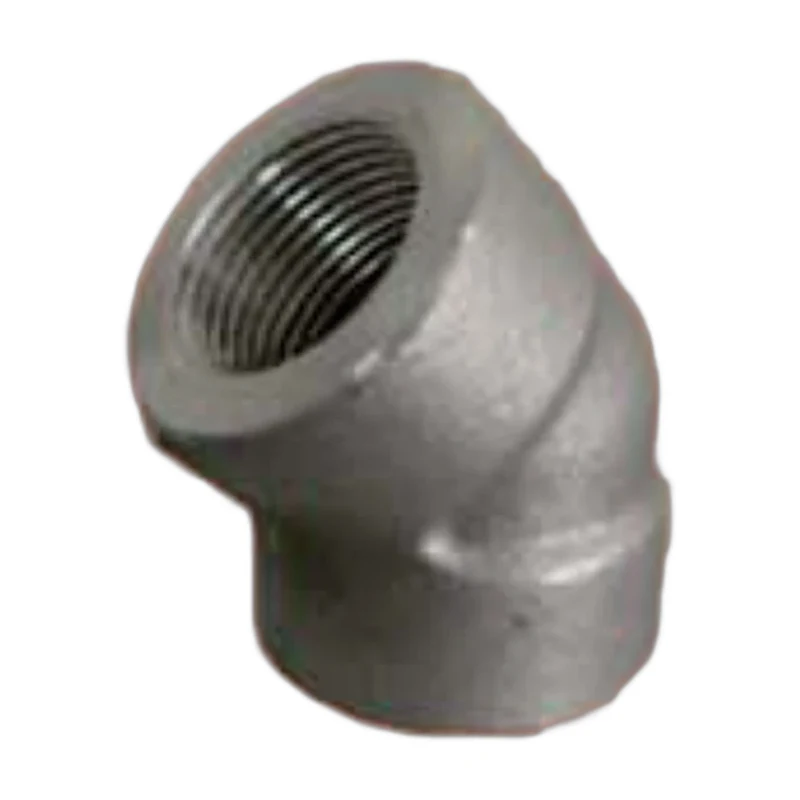

45° Elbow
Forged steel 45 degree elbow for direction changes in high pressure pipework.
Size1/8" to 4"PressureClass 2000, 3000 and 6000 LB
The Purple Valves forged steel 45 degree elbow changes pipe direction while minimising pressure drop and turbulence. Manufactured to ASME B16.11 from forged A105 carbon steel in Class 2000, 3000 and 6000 LB with threaded or socket weld ends, it suits oilfield, steam and process piping.
Specifications
Size Range
1/8" to 4"
Pressure Rating
Class 2000, 3000 and 6000 LB
End Connections
Threaded (NPT) and socket weld to ASME B16.11
Body Material
Forged carbon steel A105 (stainless steel available on request)
Applications
Oil and gas, petrochemical, industrial processing, power generation, water and utility pipework
Design Standard
ASME B16.11
Key Features
- Forged A105 carbon steel construction
- Class 2000, 3000 and 6000 LB ratings
- Threaded and socket weld ends to ASME B16.11
- 45 degree direction change
- Sizes 1/8" to 4"
Standards & Certifications
- ASME B16.11, MSS-SP-83
