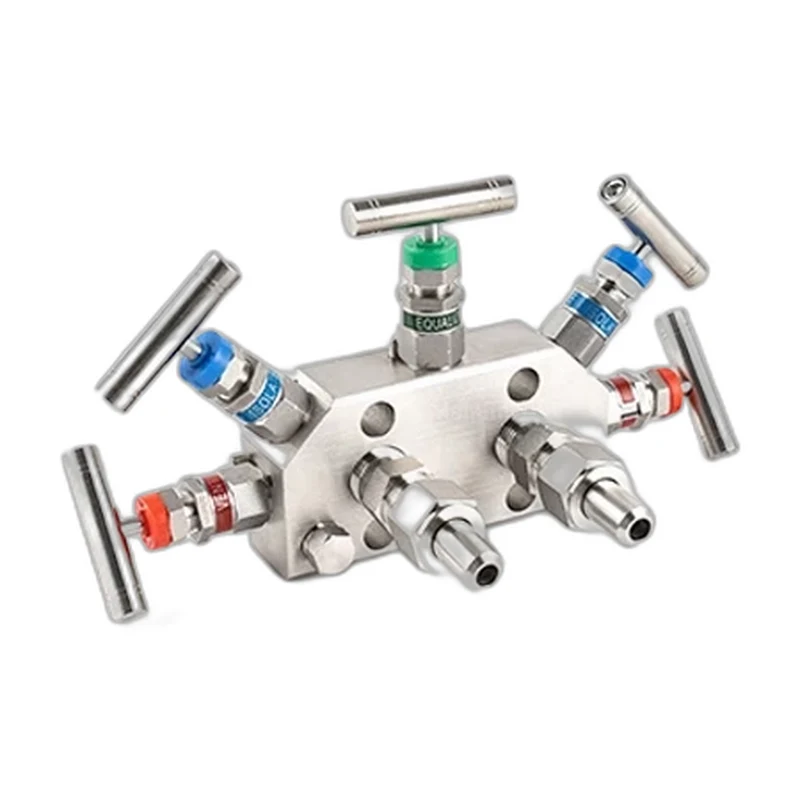

5 Valve Manifold
A five-valve manifold adding two vent/test ports to the block-and-equalise function for full DP transmitter service.
The five-valve manifold extends the three-valve arrangement with two additional vent and calibration ports, giving the technician everything needed to isolate, equalise, bleed and test a differential-pressure transmitter in place. Every needle seats a tapered tip into a small metal seat for the fine flow regulation and tight isolation that instrument hook-ups require. By consolidating five functions into one rigid body it shortens impulse lines, removes fittings and speeds commissioning and recalibration of DP cells.
Specifications
Key Features
- Two block, one equalise and two vent/test needles
- Full isolate-equalise-bleed-test capability
- Tapered needles and small seats for fine control
- Rigid integral body shortens impulse lines
- Non-rotating tips protect the seats
Options
- Direct or remote mount
- Vent and calibration ports
- Mounting bracket
- Oxygen-clean preparation
Standards & Certifications
- ASME B16.34
- API 598
- MSS SP-99
