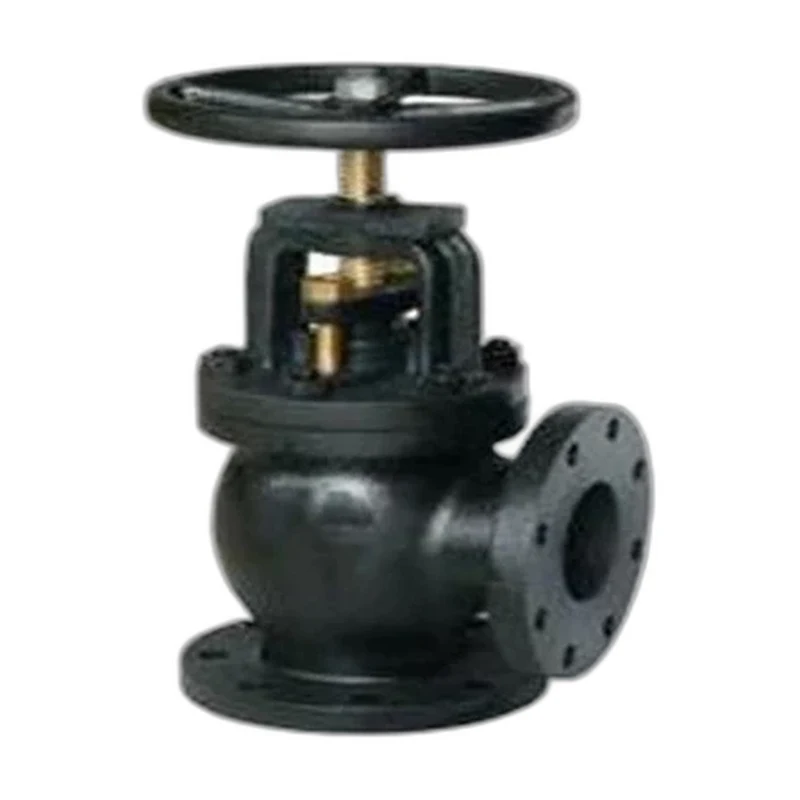

Angle Type Globe Valve
An angle-pattern globe valve that turns flow through 90 degrees while throttling and regulating with a disc onto a seat.
The Angle Type Globe Valve combines flow regulation with a 90-degree change in piping direction, removing the need for a separate elbow fitting in throttling services. Fluid enters through the disc-and-seat assembly and exits at right angles, giving precise control of flow rate at the cost of a higher pressure drop than a gate valve. Bodies are supplied in WCB, A105N, LCC, LF2, stainless CF8M/316/316L and high-alloy grades such as Alloy 20 and Hastelloy C across Class 150 to 1500, with raised face, RTJ, threaded and socket weld connections. Designed to BS 1873 and API 623 and tested to API 598, the angle pattern suits regulating and sampling lines where space, drainage and reduced turbulence matter.
Specifications
Key Features
- Precise throttling and flow regulation via disc-onto-seat closure
- Forged or cast body construction matched to service pressure and temperature
- Wide range of body and trim materials for corrosive and high-temperature media
- Renewable seat and disc for long, maintainable service life
- Multiple end connection options for flexible installation
Options
- NACE MR0175 compliant construction available
- Anti-static and fire-safe designs on request
- Actuation: gear, electric or pneumatic
- Special alloys and trims to order
Standards & Certifications
- Designed to BS 1873 / API 623 / ASME B16.34
- Tested to API 598
- Face-to-face per ASME B16.10
- NACE MR0175 available
