PRPLZ221

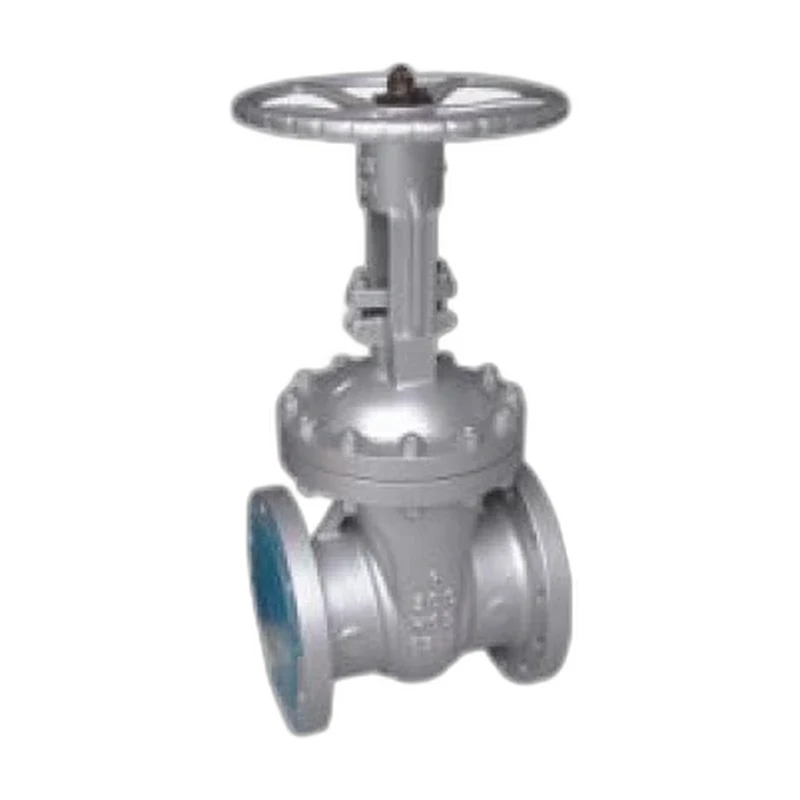

API600 Cast Steel Rising Stem Flanged Gate Valve
An API 600 cast steel rising-stem flanged gate valve for on/off isolation duty in pipelines and process plant.
Size2" to 24"PressureANSI Class 150 to 1500PortFull BoreBodyGate valve
The API600 Cast Steel Rising Stem Flanged Gate Valve is a gate valve designed for clean on/off isolation rather than throttling, opening to a full bore that gives an unobstructed flow path and a very low pressure drop when wide open. A rising stem drives a wedge across the seat to give a tight shut-off, while the body is offered in cast carbon steel (wcb), with a105n / lcc / lf2 / cf8m / 316 / 316l options to suit a range of media and temperatures from -46°C to 232°C (-50°F to 450°F). Built across 2" to 24" and rated ansi class 150 to 1500, it connects via flanged (raised face or rtj) and seals on hard-faced seats for dependable, long-life service. Because the gate must be fully raised or lowered, the valve is intended for fully-open or fully-closed duty and should not be used to regulate flow.
Specifications
Size Range
2" to 24"
Pressure Rating
ANSI Class 150 to 1500
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Flanged (Raised Face or RTJ)
Body Material
Cast carbon steel (WCB), with A105N / LCC / LF2 / CF8M / 316 / 316L options
Ball / Disc / Wedge Material
Flexible wedge, 13Cr / Stellite-faced (per trim selection)
Seat Material
Hard-faced (13Cr / Stellite) seat rings
Stem Material
13Cr / 410 stainless steel stem
Port Type
Full Bore
Body Style
Gate valve
Operation
Handwheel, Gear, Electric, Pneumatic
Applications
Oil and gas, petrochemical, power generation, water treatment and general process pipelines
Design Standard
API 600 / API 603 / ASME B16.34
Testing Standard
API 598
Face to Face Standard
ASME B16.10
Key Features
- Full-bore gate for low pressure drop
- OS&Y bolted-bonnet design, rising stem, flexible wedge, low-emission packing and gasket
- Hard-faced wedge and seats for long service life
Options
- NACE MR0175 compliant materials
- Bevel gear operator
- Actuation-ready mounting pads
- Thermal-relief (DTR) systems
- Double-lead stem for quick operation
Standards & Certifications
- Design: API 600 / API 603 / ASME B16.34
- Testing: API 598
- Face-to-face: ASME B16.10
- NACE MR0175 (optional)
Dimensions
| Design Face to Face End to End End Flange BW End Test Special |
ASME B16.34 / API600 / API603 ASME B16.10 ASME B16.10 ASME B16.5 ASME B16.25 API 598 NACE MR-01-75 |
| ITEM | PART NAME | MATERIAL | |
| 1 | Body | ASTM A216 GR.WCB | ASTM A351 CF8M |
| 2 | Seat Ring | ASTM A105 + Stellite Faced | ASTM A182 F316 |
| 3 | Disc | ASTM A216 GR.WCB+Stellite Faced | ASTM A351 CF8M |
| 4 | Stem | ASTM A182 GR.F6a | ASTM A182 F316 |
| 5 | Gasket,Ring Joint | Soft Iron | 316+Graphite |
| 6 | Bonnet | ASTM A216 GR.WCB | ASTM A351 CF8M |
| 7 | Bonnet Bolt Nuts | ASTM A194 GR.2H | ASTM A194 8M |
| 8 | Bonnet Bolts | ASTM A193 GR.B7 | ASTM A193 B8M |
| 9 | Backseat Bushing | ASTM A276 Type 410 | ASTM A351 CF8M |
| 10 | Stem Packing | Braided Graphite & Die formed Graphite Ring |
Graphite |
| 11 | Eye Bolt Pins | Carbon Steel | SS316 |
| 12 | Gland Eye Bolts | ASTM A307 GR.B | ASTM A193 B8M |
| 13 | Gland | ASTM A276 Type 410 | ASTM A182 F316 |
| 14 | Gland Flange | ASTM A216 GR.WCB | ASTM A351 CF8M |
| 15 | Eye Bolt Nuts | ASTM A194 GR.2H | ASTM A194 8M |
| 16 | Grease Nipple | Carbon Steel | SS |
| 17 | Stem Nut | AL-BRONZE | AL-BRONZE |
| 18 | Retaining Nut | Carbon Steel | CS |
| 19 | Handwheel | Ductile Iron | Ductile Iron |
| 20 | Handwheel Nut | Carbon Steel | CS |
| 21 | Screw | Carbon Steel | CS |
| 22 | Yoke | ASTM A216 GR.WCB | CS |
| 23 | Yoke Pan Bolt Nuts | ASTM A194 GR.2H | CS |
| 24 | Yoke Pan Bolts | ASTM A193 GR.B7 | CS |
| 25 | Bearing | Steel | SS |
| Dimensions and Weights 150LB | ||||||||||||||||||||||
| SIZE | in mm | 2″ 50 | 2.5″ 65 | 3″ 80 |
4″ 100 |
6″ 150 |
8″ 200 |
10″ 250 |
12″ 300 |
14″ 350 |
16″ 400 |
18″ 450 |
20″ 500 |
24″ 600 |
26″ 650 |
28″ 700 |
30″ 750 |
32″ 800 |
36″ 900 |
40″ 1000 |
42″ 1050 |
48″ 1200 |
| L | in mm | 7.00 178 |
7.50 191 |
8.00 203 |
9.00 229 |
10.50 267 |
11.50 292 |
13.00 330 |
14.00 356 |
15.00 381 |
16.00 406 |
17.00 432 |
18.00 457 |
20.00 508 |
22.00 559 |
24.00 610 |
24.00 610 |
28.00 660 |
28.00 711 |
30.00 762 |
31.00 787 |
34.00 864 |
| L1 | in mm | 8.50 216 |
9.50 241 |
11.12 283 |
12.00 305 |
15.88 403 |
16.50 419 |
18.00 457 |
19.75 502 |
22.50 572 |
24.00 610 |
26.00 660 |
28.00 711 |
32.00 813 |
34.00 864 |
36.00 914 |
36.00 914 |
38.00 965 |
40.00 1016 |
42.00 1067 |
43.00 1092 |
46.00 1168 |
| L2 | in mm | 7.50 191 | 8.00 203 |
8.50 216 |
9.50 241 |
11.00 279 |
12.00 305 |
13.50 343 |
14.50 368 |
15.50 394 |
16.50 419 |
17.50 445 |
18.50 470 |
20.50 521 |
||||||||
| H | in mm | 15.31 389 |
17.28 439 |
19.69 500 |
23.43 595 |
30.59 777 |
38.39 975 |
45.67 1160 |
54.72 1390 |
61.22 1555 |
71.30 1811 |
82.80 2103 |
90.55 2300 |
102.72 2609 |
109.45 2780 |
130.98 3327 |
141.97 3606 |
145.98 3708 |
154.49 3924 |
168.50 4280 |
175.39 4455 |
193.31 4910 |
| W | in mm | 8 200 | 8 200 | 10 250 |
10 250 |
14 350 |
14 350 |
16 400 |
18 450 |
22 560 |
24 600 |
25 640 |
27 680 |
30 760 |
24 610 |
24 610 |
24 610 |
24 610 |
24 610 |
24 610 |
32 810 |
32 810 |
| Weight RF | kg | 17 | 23 | 29 | 47 | 80 | 129 | 192 | 287 | 410 | 571 | 720 | 1170 | 1466 | 1699 | 1931 | 2380 | 2490 | 3600 | 4580 | 4710 | 6500 |
| Dimensions and Weights 300LB | |||||||||||||||||||
| SIZE | in mm | 2″ 50 |
2.5″ 65 |
3″ 80 |
4″ 100 |
6″ 150 |
8″ 200 |
10″ 250 |
12″ 300 |
14″ 350 |
16″ 400 |
18″ 450 |
20″ 500 |
24″ 600 |
26″ 650 |
28″ 700 |
30″ 750 |
32″ 800 |
36″ 900 |
| L/L1 | in mm | 8.50 216 |
9.50 241 |
11.12 283 |
12.00 305 |
15.88 403 |
16.50 419 |
18.00 457 |
19.75 502 |
30.00 762 |
33.00 838 |
36.00 914 |
39.00 991 |
45.00 1143 |
49.00 1245 |
53.00 1346 |
55.00 1397 |
60.00 1524 |
68.00 1727 |
| L2 | in mm | 9.12 232 |
10.12 257 |
11.74 298 |
12.62 321 |
16.50 419 |
17.12 435 |
18.62 473 |
20.37 517 |
30.62 778 |
33.62 854 |
36.62 930 |
39.75 1010 |
45.88 1165 |
50.00 1270 |
54.00 1372 |
56.00 1422 |
61.12 1552 |
69.12 1756 |
| H | in mm | 16.93 430 |
19.88 505 |
20.87 530 |
24.80 630 |
31.50 800 |
39.69 1008 |
48.82 1240 |
57.87 1470 |
64.76 1645 |
72.48 1841 |
77.13 1959 |
86.38 2194 |
102.28 2598 |
110.24 2800 |
122.05 3100 |
130.71 3320 |
140.16 3560 |
153.94 3910 |
| W | in mm | 8 200 |
10 250 |
10 250 |
10 250 |
14 350 |
16 400 |
18 450 |
20 500 |
24 600 |
24 600 |
24 610 |
24 610 |
24 610 |
24 610 |
24 610 |
32 810 |
32 810 |
32 810 |
| Weight RF | kg | 30 | 45 | 57 | 88 | 147 | 219 | 368 | 522 | 694 | 1080 | 1235 | 1655 | 2320 | 3100 | 3893 | 4930 | 5230 | 6885 |
| Dimensions and Weights 600LB | ||||||||||||||
| SIZE | in mm | 2″ 50 |
2.5″ 65 |
3″ 80 |
4″ 100 |
6″ 150 |
8″ 200 |
10″ 250 |
12″ 300 |
14″ 350 |
16″ 400 |
18″ 450 |
20″ 500 |
24″ 600 |
| L/L1 | in mm | 11.50 292 |
13.00 330 |
14.00 356 |
17.00 432 |
22.00 559 |
26.00 660 |
31.00 787 |
33.00 838 |
35.00 889 |
39.00 991 |
43.00 1092 |
47.00 1194 |
55.00 1397 |
| L2 | in mm | 11.62 295 |
13.12 333 |
14.12 359 |
17.12 435 |
22.12 562 |
26.12 663 |
31.12 790 |
33.12 841 |
35.12 892 |
39.12 994 |
43.12 1095 |
47.25 1200 |
55.38 1407 |
| H | in mm | 17.91 455 |
23.14 588 |
21.65 550 |
27.17 690 |
35.83 910 |
41.93 1065 |
49.49 1257 |
57.80 1468 |
63.90 1623 |
71.50 1816 |
88.98 2260 |
106.50 2705 |
110.63 2810 |
| W | in mm | 10 250 |
10 250 |
10 250 |
14 350 |
18 450 |
20 500 |
25 640 |
27 680 |
24 610 |
24 610 |
24 610 |
24 610 |
24 610 |
| Weight RF | kg | 45 | 55 | 76 | 127 | 277 | 485 | 754 | 936 | 1316 | 1672 | 2070 | 2405 | 4550 |
