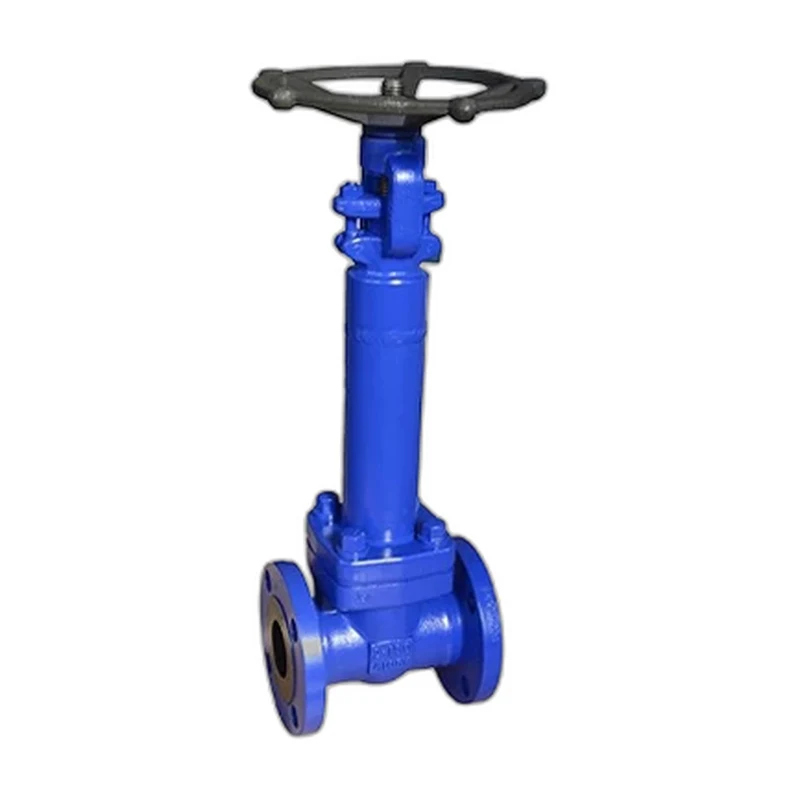

Bellow Sealed Gate Valve
A bellow-sealed cast steel gate valve providing zero-leakage stem sealing for hazardous and volatile media.
The Bellow Sealed Gate Valve is a gate valve designed for clean on/off isolation rather than throttling, opening to a full bore that gives an unobstructed flow path and a very low pressure drop when wide open. A rising stem drives a wedge across the seat to give a tight shut-off, while the body is offered in cast carbon steel (wcb), with cf8m / 316 / 316l options to suit a range of media and temperatures from -46°C to 232°C (-50°F to 450°F). Built across 1/2" to 24" and rated ansi class 150 to 1500, it connects via flanged (raised face or rtj) and seals on hard-faced seats for dependable, long-life service. Because the gate must be fully raised or lowered, the valve is intended for fully-open or fully-closed duty and should not be used to regulate flow.
Specifications
Key Features
- Full-bore gate for low pressure drop
- OS&Y bolted-bonnet design, rising stem, flexible wedge, low-emission packing and gasket
- Welded stainless steel bellows seal for zero stem leakage
- Hard-faced wedge and seats for long service life
Options
- NACE MR0175 compliant materials
- Bevel gear operator
- Actuation-ready mounting pads
- Thermal-relief (DTR) systems
- Double-lead stem for quick operation
Standards & Certifications
- Design: API 600 / API 603 / ASME B16.34
- Testing: API 598
- Face-to-face: ASME B16.10
- NACE MR0175 (optional)
