Purple Valves
PRPFL027

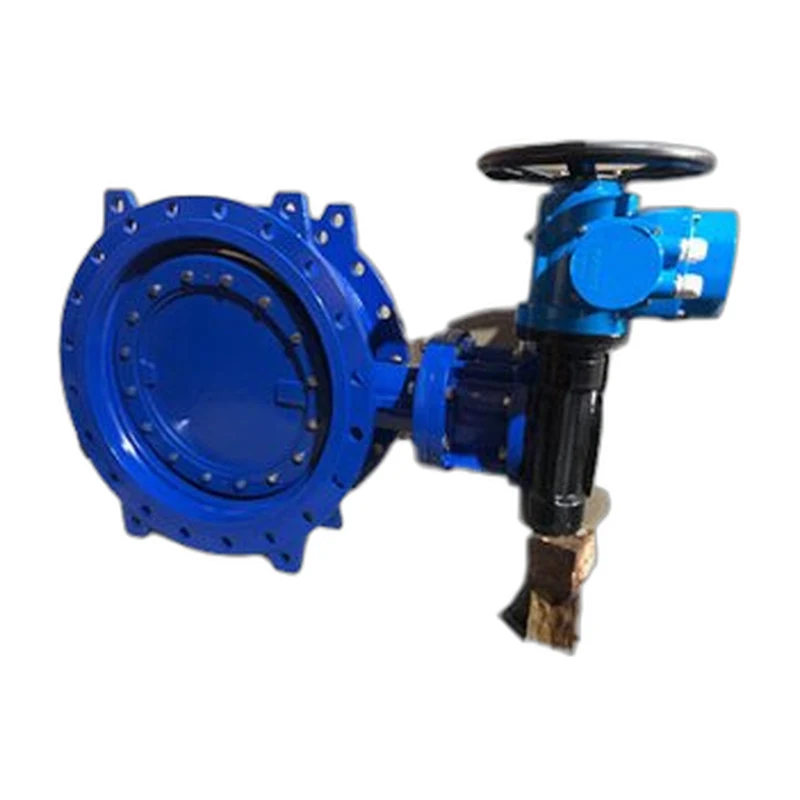

Double Eccentric Butterfly Valve (BFV07)
Double-offset (double eccentric) flanged butterfly valve with rubber seat and gear operation for large-diameter water and process isolation.
SizeDN80-DN2000BodyDouble offset butterfly
The BFV07 Double Eccentric Butterfly Valve uses a twin-offset disc geometry that lifts the disc clear of the seat on opening to reduce wear and torque while delivering long-lasting tight closure. Designed to DIN 3202 F4/F16 with EN 1092-2 flange drilling and an ISO 5211 mounting pad, it spans DN80 to DN2000 and accepts hand lever, worm gear or pneumatic and electric actuation, making it well suited to water, wastewater and large industrial flow control.
Specifications
Size Range
DN80-DN2000
End Connections
Flanged
Body Style
Double offset butterfly
Operation
Worm gear / lever / actuator
Applications
Water, wastewater and large-diameter industrial pipelines requiring durable isolation and control.
Design Standard
DIN 3202 F4/F16
Testing Standard
API 598
Face to Face Standard
DIN 3202 Series 13/14
Key Features
- Double eccentric disc design
- Flanged ends, FBE coated
- Rubber seated
- ISO 5211 mounting pad
- Seat test 17.6bar / shell test 24bar
Options
- Actuation: hand lever, worm gear, pneumatic or electric
