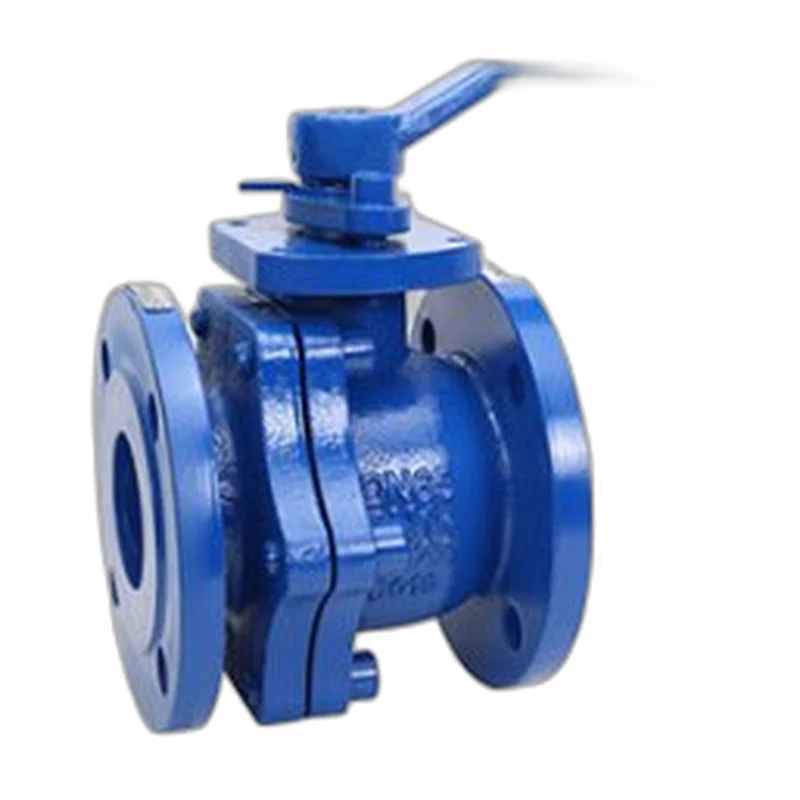

DIN 3357 F4/F5 Ball Valve (BV01)
Flanged DIN 3357 ductile iron ball valve with stainless ball and stem and PTFE seats for reliable water-network isolation.
SizeDN50-DN250PressurePN16BodyFloating ball
CategoriesBall Valves
The BV01 DIN 3357 F4/F5 Ball Valve is a flanged, ductile iron bodied quarter-turn valve manufactured to DIN 3357 with EN 1092-2 PN16 flanges and an ISO 5211 mounting pad. A stainless steel ball and stem run against PTFE seats and packing for low-torque, tight-sealing operation across DN50 to DN250, making it a robust choice for water distribution and general industrial isolation duties.
Specifications
Size Range
DN50-DN250
Pressure Rating
PN16
End Connections
Flanged (EN 1092-2 PN16)
Body Material
Ductile Iron GGG50
Seat Material
PTFE
Stem Material
SS304
Body Style
Floating ball
Operation
Hand lever
Applications
Water distribution networks and general industrial pipelines.
Design Standard
DIN 3357
Testing Standard
ISO 5208
Face to Face Standard
DIN 3202 F4/F5
Key Features
- Ductile iron body, RAL5017 coated
- SS304 ball and stem
- PTFE seats and packing
- EN 1092-2 PN16 flanges
- ISO 5211 mounting pad
Options
- Sizes DN50 to DN250
