Purple Valves
PRPFL014

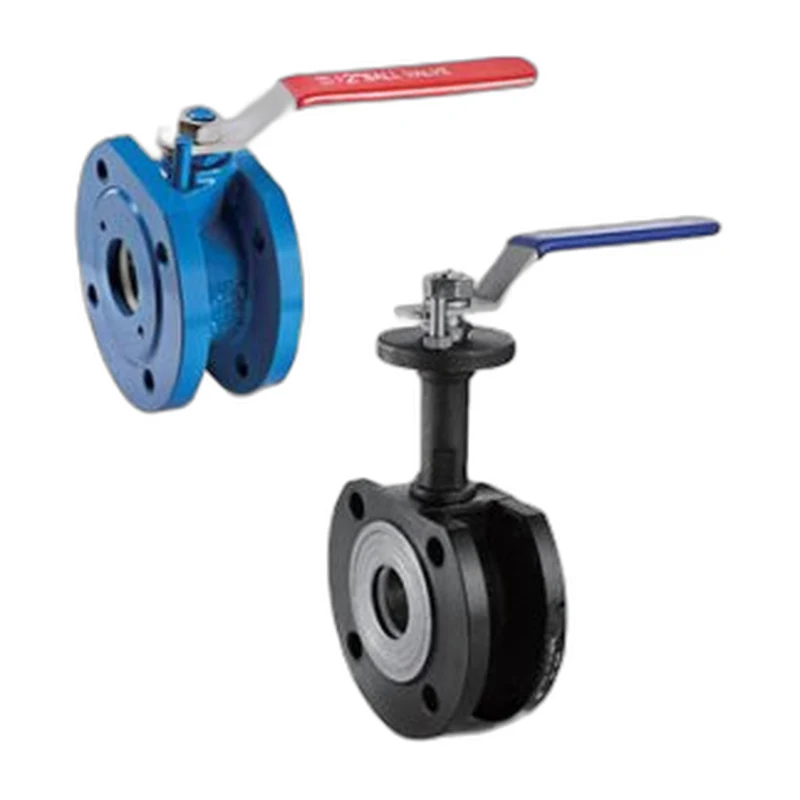

BV02-DIN3357 Wafer Type Ball Valve
A DIN3357 wafer-type ball valve with a cast iron body and stainless steel ball for compact flanged isolation.
SizeDN15-DN125PressurePN16BodyWafer
CategoriesBall Valves
This wafer-pattern ball valve is designed and manufactured to DIN3357, fitting neatly between EN1092-2 PN16 flanges to save space and weight in the pipeline. A cast iron body houses a stainless steel ball and stem with PTFE seats and packing, giving smooth quarter-turn operation and reliable sealing on clean and lightly loaded media. The hand-lever operation and optional ISO5211 mounting pad make it equally suited to manual service or future automation across a DN15 to DN125 size range.
Specifications
Size Range
DN15-DN125
Pressure Rating
PN16
End Connections
Wafer, flanges to EN1092-2 PN16
Body Material
Cast iron (GG25/GGG40)
Seat Material
PTFE / RPTFE
Stem Material
SS304 / SS316
Body Style
Wafer
Operation
Manual (hand lever); ISO5211 mounting pad available
Applications
Suited to water distribution, general process media and utility services requiring a compact flanged isolation valve.
Design Standard
DIN3357
Testing Standard
EN12266-1 / ISO5208
Face to Face Standard
Manufacturer standard
Key Features
- Wafer-type compact body
- Cast iron body
- Stainless steel ball and stem
- Flange ends to EN1092-2 PN16
- Hand lever operated
- ISO5211 mounting pad available
Options
- ISO5211 mounting pad
- Actuator-ready
