Purple Valves
PRPLZ081

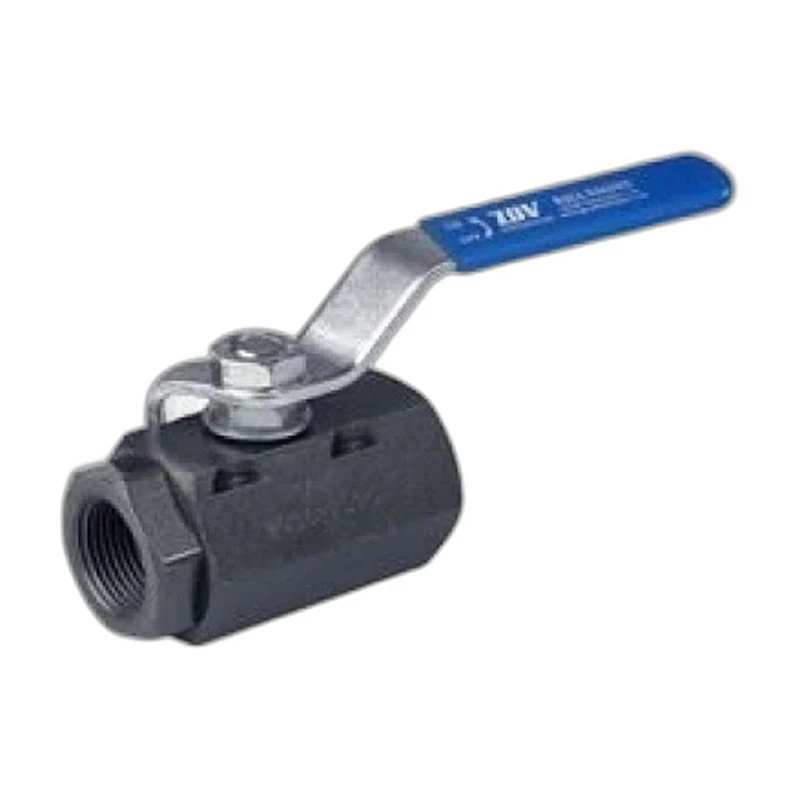

Carbon Steel High Pressure Threaded Ball Valve
A two-piece A105 carbon steel high-pressure threaded ball valve rated to 3000 PSI WOG for general industrial service.
Size1/4" to 2"Pressure3000 PSI (WOG)PortFull PortBodyTwo Piece
This high-pressure threaded ball valve is constructed from ASTM A105 forged carbon steel and rated to 3000 PSI WOG. Available from 1/4 inch to 2 inch with full port flow and NPT threaded ends, it pairs an A182 F316 stainless ball and stem with Delrin or PEEK seats for reliable, low-torque operation. The compact two-piece body suits air, water, oil and gas lines where a robust, full-bore shut-off valve is required.
Specifications
Size Range
1/4" to 2"
Pressure Rating
3000 PSI (WOG)
Temperature Range
-46°C to 232°C (-50°F to 450°F)
End Connections
Threaded NPT ASME B1.20.1
Body Material
ASTM A105 carbon steel
Ball / Disc / Wedge Material
A182 F316 stainless
Seat Material
Delrin / PEEK
Stem Material
A182 F316 stainless
Port Type
Full Port
Body Style
Two Piece
Operation
Manual lever / wrench
Applications
General service, air, water, oil and gas
Design Standard
ASME B16.34, MSS SP-110
Testing Standard
MSS SP-72, API 598
Face to Face Standard
Manufacturer's Standard
Key Features
- Forged A105 carbon steel body for high-pressure duty
- Full port for unrestricted flow
- A182 F316 stainless ball and stem
- Delrin or PEEK seats
- Rated to 3000 PSI WOG
Options
- Delrin or PEEK seats
- Locking handle
- Mounting pad for actuation
Standards & Certifications
- ASME B16.34
- MSS SP-110
- MSS SP-72
- API 598
