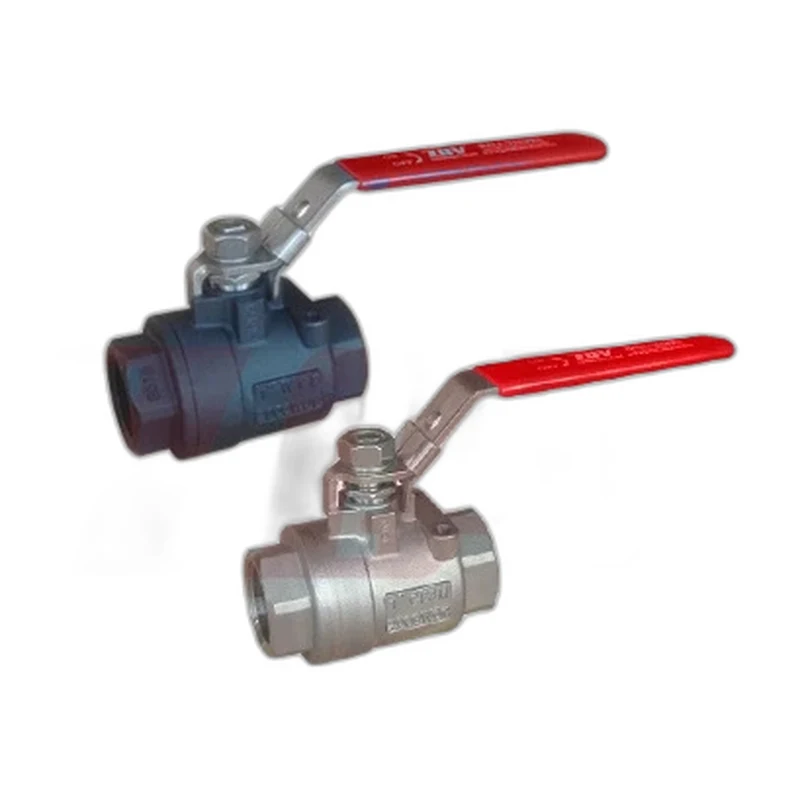

Carbon Steel Threaded Ball Valve 2000 WOG
A carbon steel threaded ball valve rated to 2000 PSI WOG for general industrial and utility service.
This two piece ZQV ball valve is engineered for high-pressure isolation across a 1/4" to 4" size range, with a maximum allowable operating pressure of 2000 PSI WOG. The Carbon steel ASTM A216 WCB (CF8M stainless option) body carries an ASTM A182 F316 stainless steel ball and ASTM A182 F316 stainless steel stem, sealing against Reinforced PTFE (RPTFE) seats for reliable, low-torque quarter-turn operation. Threaded NPT (ASME B1.20.1) connections and a full port bore make it well suited to general service, air, water and oil & gas duty.
Specifications
Key Features
- Two Piece body construction
- Quarter-turn lever operation
- Rated to 2000 PSI WOG
- ASTM A182 F316 stainless steel ball with Reinforced PTFE (RPTFE) seats
- Threaded NPT (ASME B1.20.1)
Options
- Multiple body material options
Standards & Certifications
- Designed to ASME B16.34, MSS SP-110
- Tested to MSS SP-72, API 598
Dimensions
| No. | Part Name | Material |
| 1 | Cap | A216 WCB |
| 2 | Body | A216 WCB |
| 3 | Seat | RPTFE |
| 4 | Ball | A182 F316 |
| 5 | Stem | A182 F316 |
| 6 | Stem Gasket | RPTFE |
| 7 | Packing | Graphite |
| 8 | Gland | ss |
| 9 | handle | ss+pvc |
| 10 | Spring Gasket | ss |
| 11 | Nut | A2-70 |
