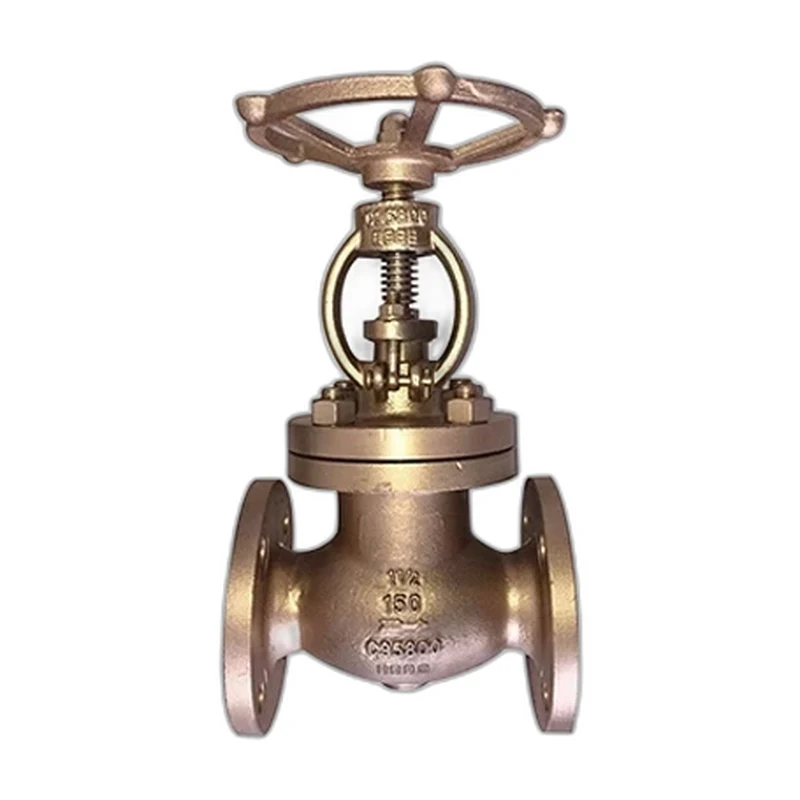

Cast Bronze Globe Valve
A cast bronze globe valve for water, steam and marine services where corrosion resistance and reliable throttling are needed.
The Cast Bronze Globe Valve is built for water, low-pressure steam, HVAC and marine systems where bronze's natural corrosion resistance gives long, dependable service. The disc closes onto a renewable seat to throttle and regulate flow, providing the fine control characteristic of globe valves while accepting their inherently higher pressure drop. The cast bronze or gunmetal body and bonnet resist dezincification and seawater attack, and the valve is supplied with threaded, solder or flanged ends in sizes from 1/2 inch to 4 inch. Tested to API 598 standards, it is a practical regulating valve for potable water, heating circuits and shipboard piping.
Specifications
Key Features
- Precise throttling and flow regulation via disc-onto-seat closure
- Forged or cast body construction matched to service pressure and temperature
- Wide range of body and trim materials for corrosive and high-temperature media
- Renewable seat and disc for long, maintainable service life
- Multiple end connection options for flexible installation
Options
- NACE MR0175 compliant construction available
- Anti-static and fire-safe designs on request
- Actuation: gear, electric or pneumatic
- Special alloys and trims to order
Standards & Certifications
- Designed to BS 1873 / API 623 / ASME B16.34
- Tested to API 598
- Face-to-face per ASME B16.10
- NACE MR0175 available
