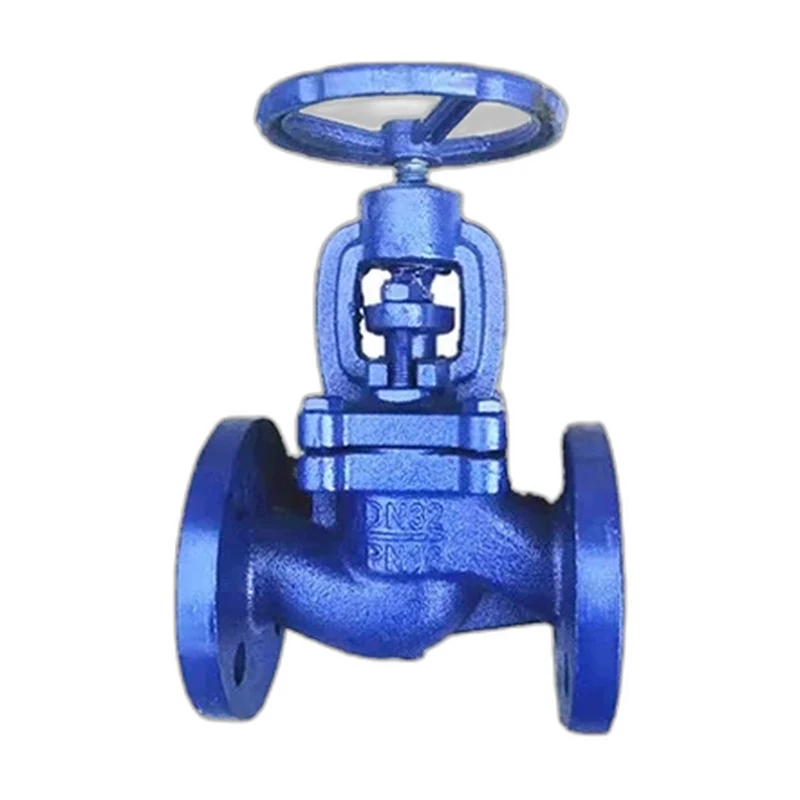

Cast Iron Globe Valve
A flanged cast iron globe valve for economical throttling of water, steam and air in low-pressure utility systems.
The Cast Iron Globe Valve provides an economical means of regulating water, steam, oil and air in building services, irrigation and general low-pressure utility piping. Flow passes through the disc-and-seat throttling element, giving operators the controllability that globe valves are known for while accepting a higher pressure drop than a gate valve. The cast iron or ductile iron body with bolted bonnet carries Class 125/150 ratings, with flanged raised-face ends in sizes from 2 inch to 24 inch. Larger valves are gear operated for ease of use. Tested to API 598, it is a cost-effective choice where service pressures and temperatures are moderate.
Specifications
Key Features
- Precise throttling and flow regulation via disc-onto-seat closure
- Forged or cast body construction matched to service pressure and temperature
- Wide range of body and trim materials for corrosive and high-temperature media
- Renewable seat and disc for long, maintainable service life
- Multiple end connection options for flexible installation
Options
- NACE MR0175 compliant construction available
- Anti-static and fire-safe designs on request
- Actuation: gear, electric or pneumatic
- Special alloys and trims to order
Standards & Certifications
- Designed to BS 1873 / API 623 / ASME B16.34
- Tested to API 598
- Face-to-face per ASME B16.10
- NACE MR0175 available
