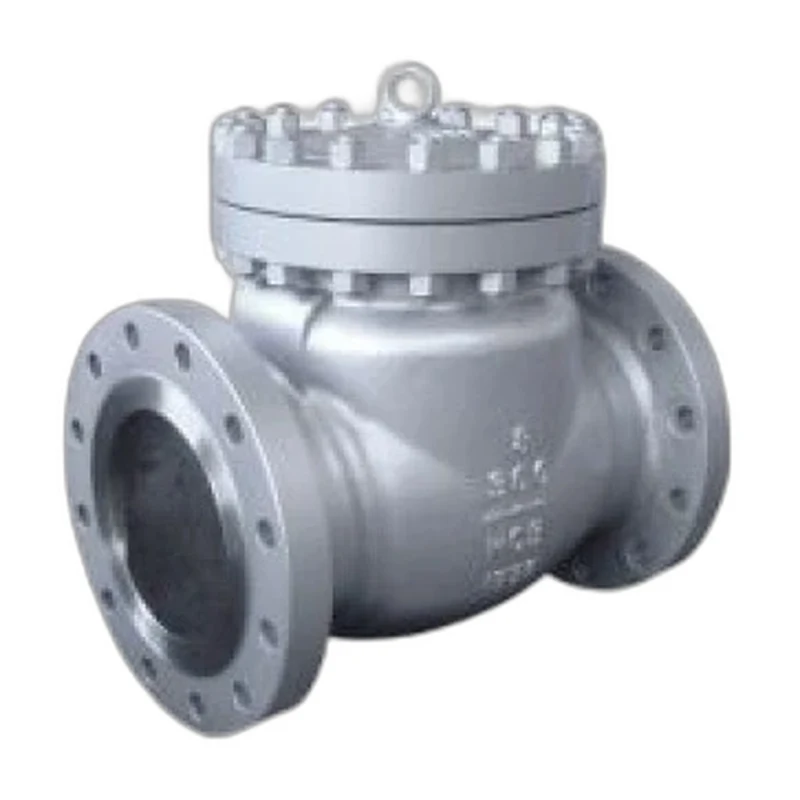

Cast Steel Flanged Swing Check Valves Class
A flanged cast steel swing check valve that prevents reverse flow automatically across class 150 to 1500 piping systems.
This cast steel swing check valve is engineered to give pipelines reliable, automatic protection against backflow. A hinged disc inside the body swings open under forward flow and falls shut the moment flow reverses, with no operator action required. Cast in WCB and other steel grades and finished with raised face, RTJ or weld-end flanged connections, it suits a broad range of pressure classes and is well matched to power, oil, gas and general industrial duty where dependable non-return performance matters.
Specifications
Key Features
- Automatic swing-disc non-return action
- Cast steel body in multiple grades
- Flanged raised face, RTJ or weld ends
- Low pressure drop, full-port flow path
- Wide class 150 to 1500 pressure coverage
Options
- NACE compliant trim
- Special materials on request
- Soft or metal seating
Standards & Certifications
- API 598
- NACE compliant (optional)
- API 6D
Dimensions
| Sizes | L / L1 | H |
| 2″ | 8 (203) | 5-1/2 (140) |
| 2-1/2″ | 8-1/2 (216) | 6-1/4 (159) |
| 3″ | 9-1/2 (241) | 6-7/8 (174) |
| 4″ | 11-1/2 (292) | 8-1/8 (206) |
| 5″ | 13 (330) | 9 (229) |
| 6″ | 14 (356) | 9-7/8 (251) |
| 8″ | 19-1/2 (495) | 11-5/8 (295) |
| 10″ | 24-1/2 (622) | 13 (330) |
| 12″ | 27-1/2 (699) | 14-7/8 (378) |
| 14″ | 31 (787) | 15-7/8 (403) |
| 16″ | 34 (864) | 18-1/4 (463) |
| 18″ | 38-1/2 (978) | 22 (559) |
| 20″ | 38-1/2 (978) | 24 (610) |
| 24″ | 51 (1295) | 28-1/2 (724) |
| 30″ | 60 (1524) | 32 (813) |
| 36″ | 77 (1956) | 34 (864) |
| Sizes | L / L1 | H |
| 2″ | 10-1/2 (267) | 6-3/8 (162) |
| 2-1/2″ | 11-1/2 (292) | 7-1/2 (190) |
| 3″ | 12-1/2 (318) | 7-7/8 (200) |
| 4″ | 14 (356) | 9 (229) |
| 6″ | 17-1/2 (445) | 11 (279) |
| 8″ | 21 (533) | 12-5/8 (321) |
| 10″ | 24-1/2 (622) | 15 (381) |
| 12″ | 28 (711) | 17-1/8 (435) |
| 14″ | 33 (838) | 20 (508) |
| 16″ | 34 (864) | 20-1/2 (521) |
| 18″ | 38-1/2 (978) | 22-1/2 (571) |
| 20″ | 40 (1016) | 25 (635) |
| 24″ | 53 (1346) | 29 (737) |
| Sizes | L / L1 | H |
| 2″ | 11-1/2 (292) | 7-3/8 (187) |
| 2-1/2″ | 13 (330) | 7-7/8 (200) |
| 3″ | 14 (356) | 8-1/4 (210) |
| 4″ | 17 (432) | 10-1/4 (260) |
| 6″ | 22 (559) | 13 (330) |
| 8″ | 26 (660) | 17 (432) |
| 10″ | 31 (787) | 19 (483) |
| 12″ | 33 (838) | 20 (508) |
| 14″ | 35 (889) | 22-1/2 (572) |
| 16″ | 39 (991) | 26 (660) |
| 18″ | 43 (1092) | 28 (711) |
| 20″ | 47 (1194) | 31 (787) |
| 24″ | 55 (1397) | 34 (864) |
| Sizes | L / L1 | H |
| 2″ | 14-1/2 (368) | 9-1/4 (235) |
| 3″ | 15 (381) | 9-1/2 (241) |
| 4″ | 18 (457) | 11 (279) |
| 6″ | 24 (610) | 13-3/4 (349) |
| 8″ | 29 (737) | 18 (457) |
| Sizes | L / L1 | H |
| 2″ | 14-1/2 (368) | 8-3/8 (213) |
| 3″ | 18-1/2 (470) | 9-1/4 (235) |
| 4″ | 21-1/2 (546) | 11 (279) |
| 6″ | 27-3/4 (705) | 13-3/4 (349) |
| 8″ | 32-3/4 (832) | 18 (457) |
| Sizes | L / L1 | H |
| 2″ | 17-3/4 (451) | 13 (330) |
| 3″ | 22-3/4 (578) | 16 (406) |
| 4″ | 26-1/2 (673) | 16 (406) |
| 6″ | 36 (914) | 23 (584) |
| 8″ | 40-1/4 (1022) | 28-1/2 (724) |
