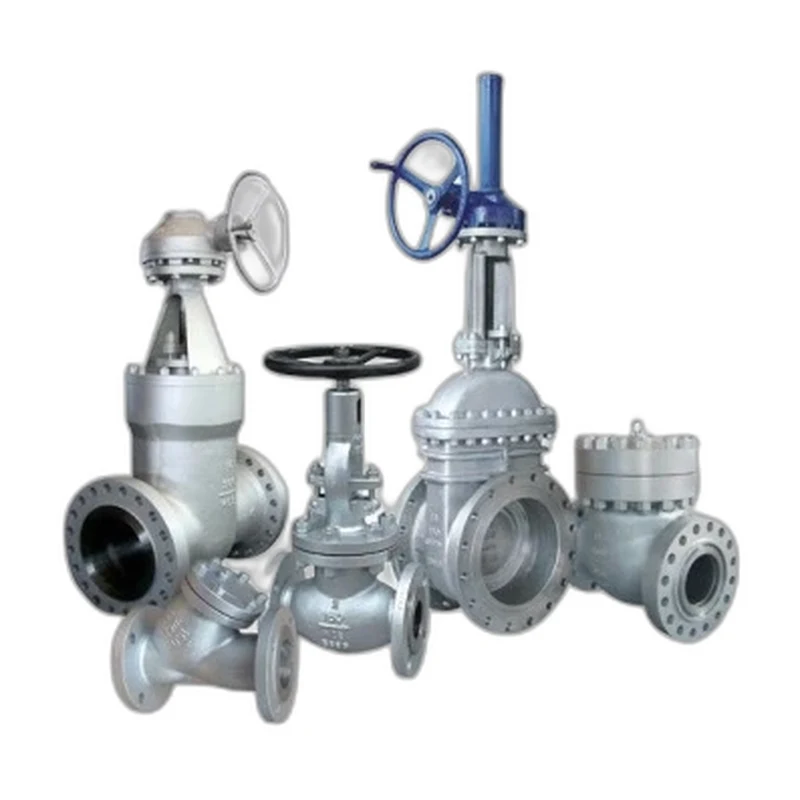

Cast Steel Pressure Seal Bonnet Globe Valve
A pressure-seal bonnet cast steel globe valve for high-pressure, high-temperature throttling in power and steam service.
The Cast Steel Pressure Seal Bonnet Globe Valve is engineered for high-pressure, high-temperature duties such as boiler feed, main steam and power-plant piping where bolted bonnets become impractical. As internal pressure rises, the pressure-seal bonnet design tightens its own gasket, giving a more reliable seal at the upper pressure classes. The disc-and-seat element throttles and regulates flow with the precision expected of globe valves while accepting their higher pressure drop. Bodies are supplied in WCB and chrome-moly A217 WC6/WC9/C5/C12A for elevated-temperature strength, with butt weld and RTJ ends in sizes from 2 inch to 24 inch. Designed to BS 1873 / API 623 / ASME B16.34 and tested to API 598.
Specifications
Key Features
- Precise throttling and flow regulation via disc-onto-seat closure
- Forged or cast body construction matched to service pressure and temperature
- Wide range of body and trim materials for corrosive and high-temperature media
- Renewable seat and disc for long, maintainable service life
- Multiple end connection options for flexible installation
Options
- NACE MR0175 compliant construction available
- Anti-static and fire-safe designs on request
- Actuation: gear, electric or pneumatic
- Special alloys and trims to order
Standards & Certifications
- Designed to BS 1873 / API 623 / ASME B16.34
- Tested to API 598
- Face-to-face per ASME B16.10
- NACE MR0175 available
Dimensions
|
Design Face to Face End to End End Flange BW End Test Special |
API600/API603 ASME B16.10 ASME B16.10 ASME B16.5 ASME B16.25 API 598 NACE MR-01-75 |
| ITEM | PART NAME | MATERIAL |
| 1 | Body | ASTM A216 GR.WCB |
| 2 | Seat Ring | ASTM A105 + Stellite Faced |
| 3 | Disc | ASTM A105 + Stellite Faced |
| 4 | Disc Thrust Plate | ASTM A276 Type 420 |
| 5 | Disc Nut | ASTM A276 Type 410 |
| 6 | Stem | ASTM A182 GR.F6a |
| 7 | Bonnet Bolt Nuts | ASTM A194 GR.2H |
| 8 | Bonnet Bolts | ASTM A193 GR.B7 |
| 9 | Gasket, Ring Joint | Soft Iron |
| 10 | Backseat Bushing | ASTM A276 Type 410 |
| 11 | Stem Packing | Braided Graphite & Die formed Graphite Ring |
| 12 | Bonnet | ASTM A216 GR.WCB |
| 13 | Eye Bolt Pins | Carbon Steel |
| 14 | Gland | ASTM A276 Type 410 |
| 15 | Gland Flange | ASTM A216 GR.WCB |
| 16 | Gland Eye Bolts | ASTM A307 GR.B |
| 17 | Eye Bolt Nuts | ASTM A194 GR.2H |
| 18 | Yoke Bush | ASTM A439 GR.D-2 |
| 19 | Screw | Carbon Steel |
| 20 | Handwheel | Ductile Iron |
| 21 | Handwheel Nut | ASTM A194 GR.2H |
| 22 | Washer | Carbon Steel |
| 23 | Lantern Ring On Request | ASTM A276 Type 410 |
| Dimensions and Weights | CLASS 900 | ||||||
| SIZE | in mm | 2″ 50 |
2.5″ 65 |
3″ 80 |
4″ 100 |
6″ 150 |
8″ 200 |
| L/L1 | in mm | 14.50 368 |
16.50 419 |
15.00 381 |
18.00 457 |
24.00 610 |
29.00 737 |
| L2 | in mm | 14.62 371 |
16.62 422 |
15.12 384 |
18.12 460 |
24.12 613 |
29.12 740 |
| H | in mm | 23.62 600 |
25.98 660 |
26.18 665 |
31.50 800 |
43.62 1108 |
46.61 1184 |
| W | in mm | 14 350 |
14 350 |
18 450 |
20 500 |
24 610 |
24 610 |
| Weight RF | kg | 95 | 138 | 122 | 195 | 435 | 730 |
| Dimensions and Weights | CLASS 2500 | ||||||
| SIZE | in mm | 2″ 50 |
2.5″ 65 |
3″ 80 |
4″ 100 |
6″ 150 |
8″ 200 |
| L/L1 | in mm | 17.75 451 |
20.00 508 |
22.75 578 |
26.50 673 |
36.00 914 |
40.25 1022 |
| L2 | in mm | 17.87 454 |
20.25 514 |
23.00 584 |
26.88 683 |
36.50 927 |
40.87 1038 |
| H | in mm | 28.35 720 |
31.50 800 |
34.84 885 |
49.61 1260 |
75.00 1905 |
97.05 2465 |
| W | in mm |
16 400 |
20 500 |
22 560 |
24 600 |
24 610 |
24 610 |
| Weight RF | kg | 176 | 264 | 308 | 759 | 1990 | 4390 |
| Dimensions and Weights | CLASS 1500 | ||||||
| SIZE | in mm | 2″ 50 |
2.5″ 65 |
3″ 80 |
4″ 100 |
6″ 150 |
8″ 200 |
| L/L1 | in mm | 14.50 368 |
16.50 419 |
18.50 470 |
21.50 546 |
27.75 705 |
32.75 832 |
| L2 | in mm | 14.62 371 |
16.62 422 |
18.62 473 |
21.62 549 |
28.00 711 |
33.13 841 |
| H | in mm | 25.98 660 |
25.98 660 |
30.31 770 |
33.46 850 |
45.08 1145 |
52.95 1345 |
| W | in mm |
14 350 |
14 350 |
20 500 |
22 560 |
24 610 |
24 610 |
| Weight RF | kg | 95 | 138 | 250 | 435 | 540 | 970 |
