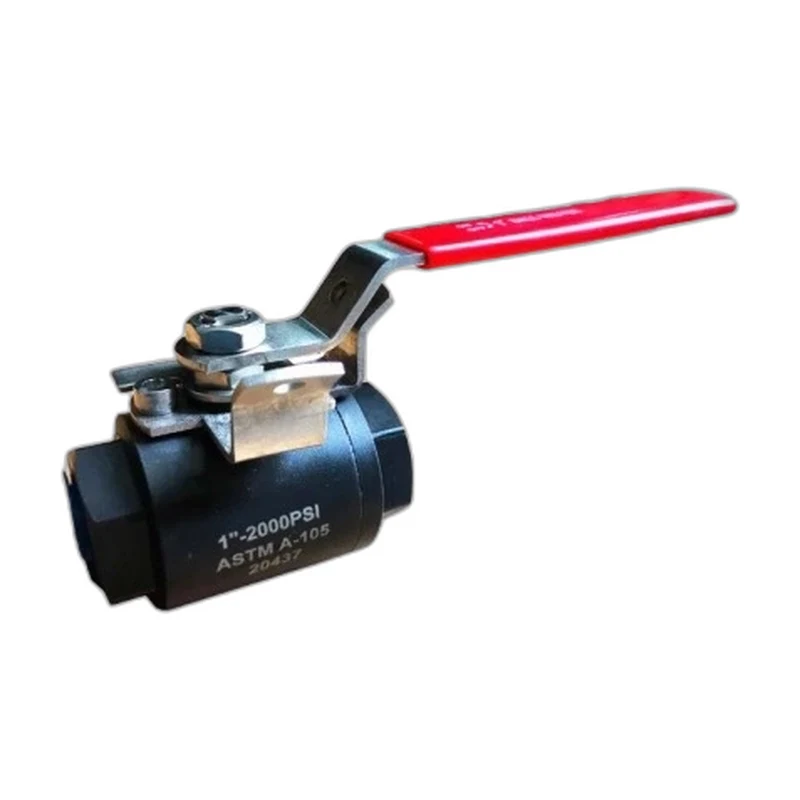

Class 800LB Carbon Steel Threaded Ball Valve
A Class 800 carbon steel threaded ball valve for general and oil & gas isolation service.
This two piece ZQV ball valve is engineered for high-pressure isolation across a 1/4" to 4" size range, with a maximum allowable operating pressure of ANSI Class 800 (2000 PSI WOG). The Carbon steel ASTM A105 (A182 F316 / F304 stainless options) body carries an ASTM A182 F316 stainless steel ball and ASTM A182 F316 stainless steel stem, sealing against Reinforced PTFE (RPTFE) seats for reliable, low-torque quarter-turn operation. Threaded NPT (ASME B1.20.1) connections and a full port / reduced port bore make it well suited to general service, air, water and oil & gas duty. A fire-safe design adds secondary metal-to-metal sealing for security during a fire event.
Specifications
Key Features
- Two Piece body construction
- Quarter-turn lever operation
- Rated to ANSI Class 800 (2000 PSI WOG)
- ASTM A182 F316 stainless steel ball with Reinforced PTFE (RPTFE) seats
- Threaded NPT (ASME B1.20.1)
- Fire-safe design per API 607
Options
- Full port or reduced port
- Multiple body material options
- Fire-safe option
Standards & Certifications
- Designed to ASME B16.34, API 607, API 608
- Tested to MSS SP-72, API 598
- Fire-safe tested to API 607
Dimensions
| Body | ASTM A105- Carbon Steel ASTM A182 F304 / F304L- Stainless Steel ASTM A182 F316 / F316L- Stainless Steel ASTM A182 F11/F22- Alloy Steel |
| Ball | ASTM A 182 F304/F316/F304L/F316L |
| Stem | ASTM A182 F304/F316/F304L/F316L,SS420,17-4PH |
| Ball Seat& BodySeal |
TFM/MYLON 25% Glass Filled (RPTFE), 25% Carbon Filled (CPTFE) Peek /Delrin 304+Graphite |
| Design standard | BS EN ISO 17292 ( BS 5351), ASME B16.34, API 608,BS EN ISO 12516,BS EN 1983 |
| End Connection | Screed/Threaded End to ASME B1.20.1, Socket Weld End to ASME B16.11, Butt Weld End to ASME B16.25 |
| Ispection& Testing Stardard | API 598, BS EN ISO 12266-I(BS 6755 -I) |
| Manufacturing Size Range | 1/2” (DN8) to 4”(DN100) |
| Pressure Rating of Valve | CLASS 800 CLASS 1500 CLASS 2500 2000PSI 300PSI 5000PSI 6000PSI PN100 PN160 PN250 PN420 |
| Option | Reduced Port /Full Port Blow-out-Proof Stem Anti-static device API 607 Firesafe Approval Lock device Oval Handle Spring return handle Pneumatic actuator SAE Thread |
