Purple Valves
PRPLZ008

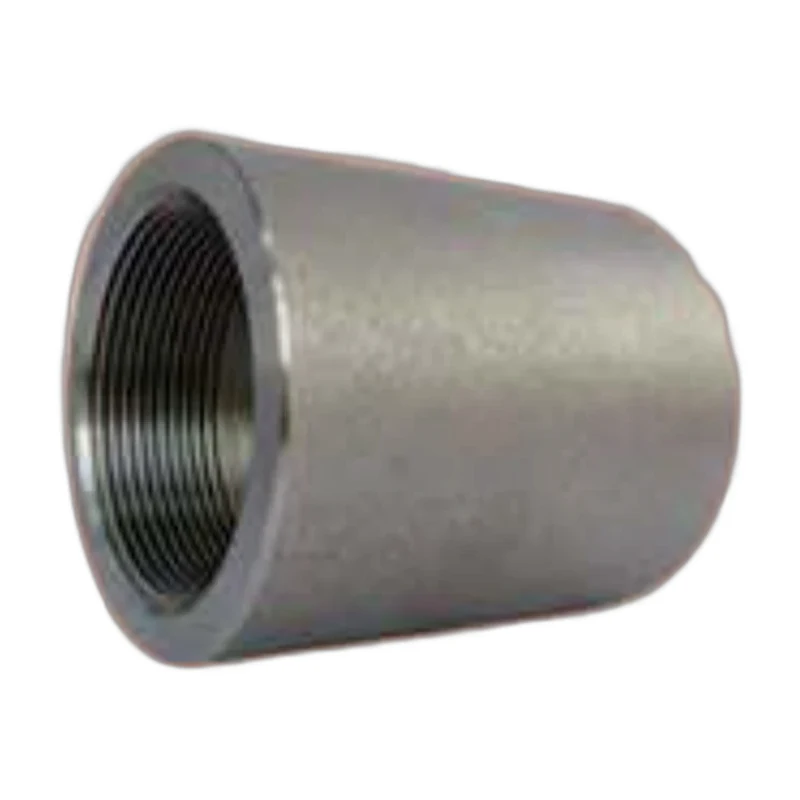

Coupling
Forged steel full coupling for joining threaded or socket weld pipe to ASME B16.11.
Size1/8" to 4"PressureClass 2000, 3000 and 6000 LB
The Purple Valves forged steel coupling joins two lengths of pipe in high pressure threaded or socket weld systems. Manufactured to ASME B16.11 from forged A105 carbon steel in Class 2000, 3000 and 6000 LB, it suits oilfield, steam, hydraulic and general industrial pipework where a compact, high-integrity connection is required.
Specifications
Size Range
1/8" to 4"
Pressure Rating
Class 2000, 3000 and 6000 LB
End Connections
Threaded (NPT) and socket weld to ASME B16.11
Body Material
Forged carbon steel A105 (stainless steel available on request)
Applications
Oil and gas, petrochemical, industrial processing, power generation, water and utility pipework
Design Standard
ASME B16.11
Key Features
- Forged A105 carbon steel construction
- Class 2000, 3000 and 6000 LB ratings
- Threaded and socket weld ends to ASME B16.11
- Sizes 1/8" to 4"
Standards & Certifications
- ASME B16.11, MSS-SP-83
