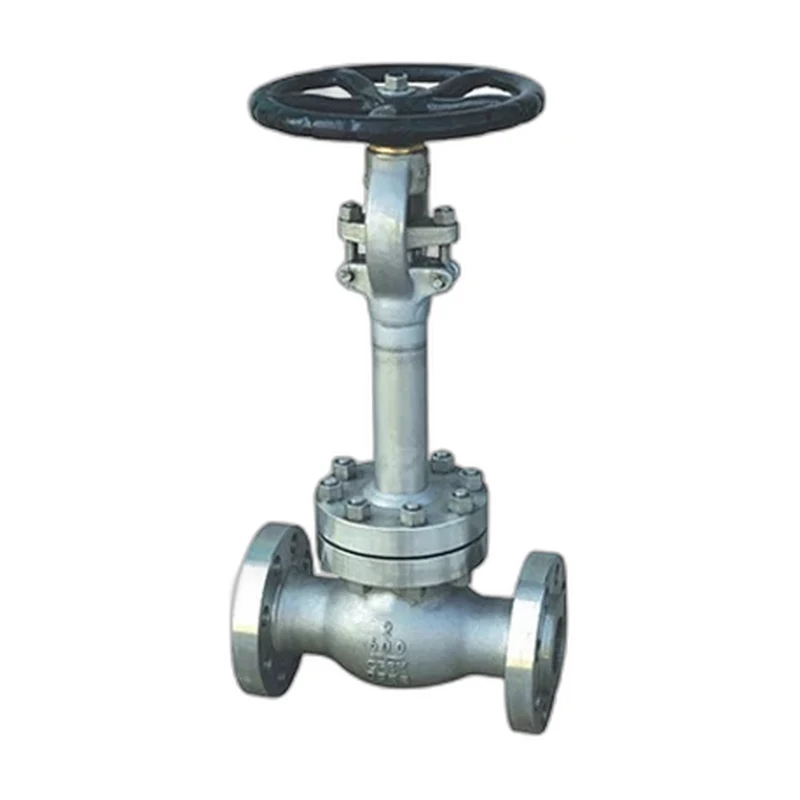

Cryogenic Globe Valve
A cryogenic globe valve with extended bonnet for throttling LNG, liquid oxygen, nitrogen and other low-temperature media.
The Cryogenic Globe Valve is purpose-built for LNG, liquid oxygen, nitrogen, argon and other low-temperature fluids that demand both tight control and reliable performance at extreme cold. An extended bonnet keeps the gland packing clear of the cryogenic zone, protecting the stem seal and preventing icing, while the disc-onto-seat element throttles and regulates flow with the fine control globe valves provide, accepting a higher pressure drop in return. Bodies are produced in austenitic stainless CF8M/316/316L and low-temperature carbon steels LCB/LF2 across Class 150 to 1500 with flanged and butt weld ends in sizes from 1/2 inch to 24 inch. Tested to API 598, each valve can be cryogenically validated for service down to -196 degrees Celsius.
Specifications
Key Features
- Precise throttling and flow regulation via disc-onto-seat closure
- Forged or cast body construction matched to service pressure and temperature
- Wide range of body and trim materials for corrosive and high-temperature media
- Renewable seat and disc for long, maintainable service life
- Multiple end connection options for flexible installation
Options
- NACE MR0175 compliant construction available
- Anti-static and fire-safe designs on request
- Actuation: gear, electric or pneumatic
- Special alloys and trims to order
Standards & Certifications
- Designed to BS 1873 / API 623 / ASME B16.34
- Tested to API 598
- Face-to-face per ASME B16.10
- NACE MR0175 available
