Purple Valves
PRPFL037

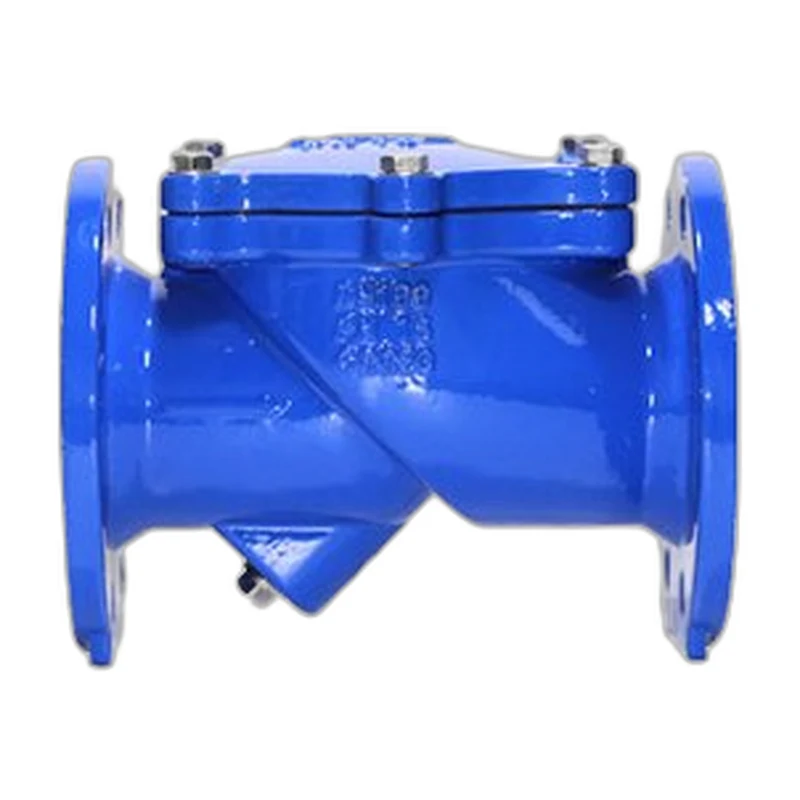

CV02-45 Flap Check Valve
A 45-degree flapper swing check valve with a bolted bonnet for low-headloss non-return service on water and sewage.
SizeDN50-DN700PressurePN10/PN16Body45-degree flap swing check, bolted bonnet
This 45-degree flapper check valve uses an inclined seat to shorten the disc travel, reducing slam and water hammer when flow reverses. The disc lifts on forward flow once upstream pressure exceeds downstream, then seats positively to prevent backflow. With a ductile iron body and bonnet, EPDM-faced flapper and FBE coating, it is a robust non-return solution for clear water, sewage and air service across a wide DN50 to DN700 range.
Specifications
Size Range
DN50-DN700
Pressure Rating
PN10/PN16
End Connections
Flanged to EN1092-2 / ASME B16.1 / B16.42
Body Material
Ductile iron GGG50
Ball / Disc / Wedge Material
WCB + EPDM flapper
Seat Material
EPDM
Body Style
45-degree flap swing check, bolted bonnet
Operation
Automatic (pressure actuated)
Applications
Suited to clear water and potable supply, wastewater and sewage, fire-fighting mains and air service where reliable non-return protection is required.
Design Standard
BS EN 5153
Testing Standard
EN12266-1
Face to Face Standard
BS5153 / ASME B16.10 / DIN F6
Key Features
- 45-degree inclined seat shortens closing stroke
- Reduced slam and water hammer
- Bolted bonnet
- FBE coated ductile iron body
- Suitable for clear water, sewage and air
