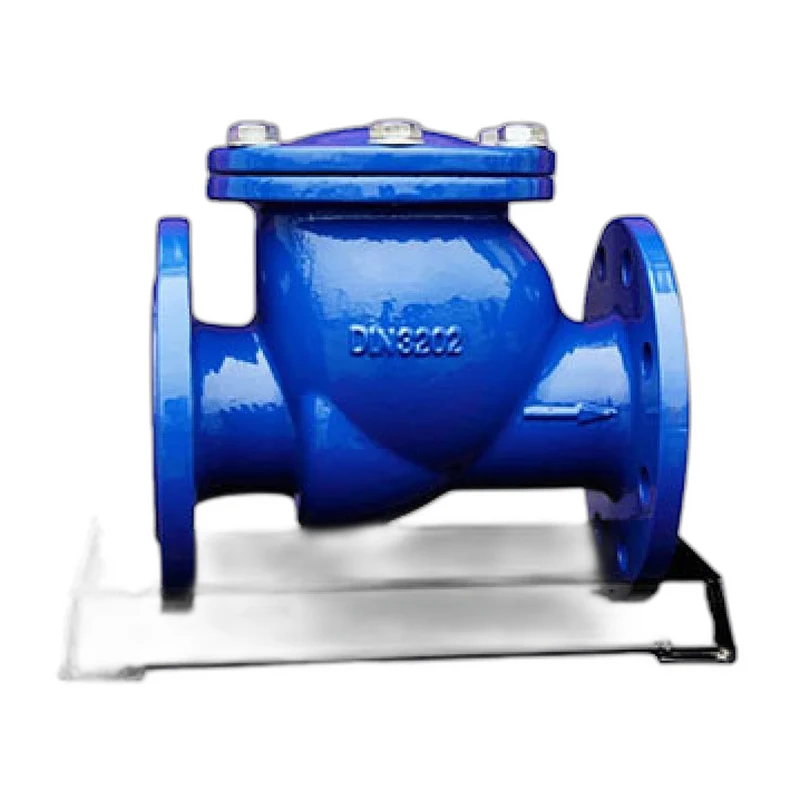

CV03 Swing Check Valve DIN3202 F6 PN10/PN16
Flanged swing check valve to DIN 3202 F6, PN10/PN16, DN40 to DN300.
SizeDN40 to DN300PressurePN10/PN16
The CV03 swing check valve provides low head-loss non-return protection in water pipelines. Designed to DIN 3352 with face-to-face to DIN 3202 F6 and BS 5153, flanges to EN 1092-2 PN10/16 and testing to EN 12266 / ISO 5208.
Specifications
Size Range
DN40 to DN300
Pressure Rating
PN10/PN16
Applications
Water and wastewater, irrigation, pumping stations, municipal infrastructure, fire protection
Design Standard
DIN 3352
Testing Standard
EN 12266, ISO 5208
Key Features
- Swing pattern, low head loss
- Face-to-face DIN 3202 F6 / BS 5153
- Flanges EN 1092-2 PN10/PN16
- Tested to EN 12266 / ISO 5208
- Sizes DN40 to DN300
