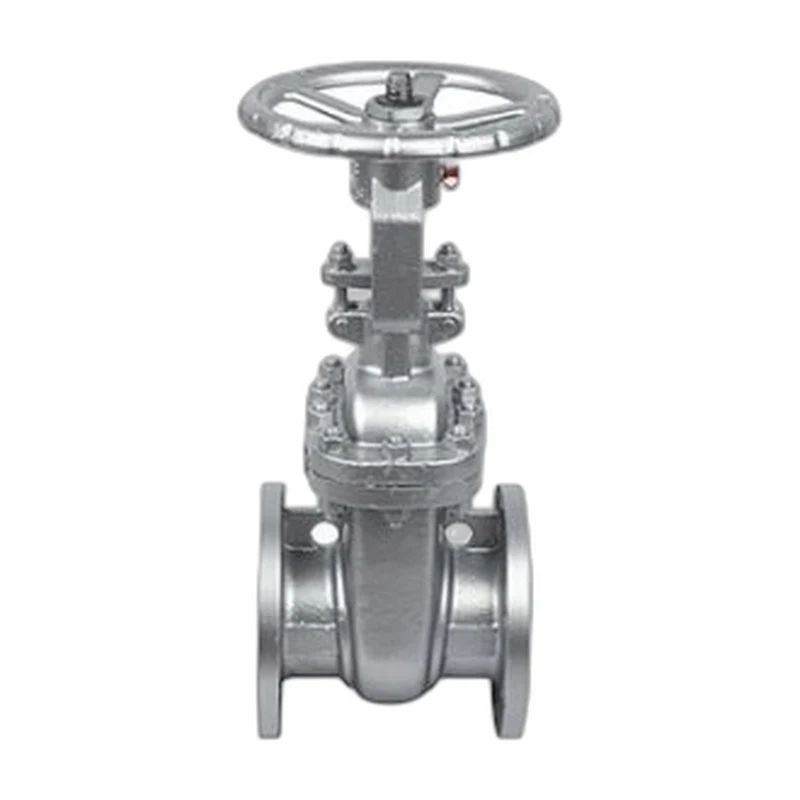

DIN Gate Valve PN100
High-pressure DIN metal-seated wedge gate valve rated to PN100 for cast, alloy and stainless steel service in industrial pipelines.
SizeDN50-DN1200PressurePN10 to PN250BodyWedge gate, rising stem
CategoriesGate Valves
The DIN Gate Valve PN100 is a high-pressure, metal-seated wedge gate valve built to DIN standards with a rising stem and bolted or pressure-seal bonnet. Offered in carbon, alloy and stainless steel grades across DN50 to DN1200 and pressure classes up to PN250, its hardfaced wedge and seats deliver durable straight-through isolation for steam, power and demanding process applications.
Specifications
Size Range
DN50-DN1200
Pressure Rating
PN10 to PN250
End Connections
Flanged
Body Material
1.0619, 1.1138, 1.4306, 1.4308, 1.4408, 1.7706
Body Style
Wedge gate, rising stem
Operation
Handwheel
Applications
High-pressure steam, power generation and industrial process pipelines.
Design Standard
DIN
Key Features
- Metal-seated hardfaced wedge
- Rising stem, bolted or pressure-seal bonnet
- Carbon, alloy and stainless grades
- Pressure classes up to PN250
Options
- Body grades 1.0619, 1.1138, 1.4306, 1.4308, 1.4408, 1.7706
