Purple Valves
PRPFL064

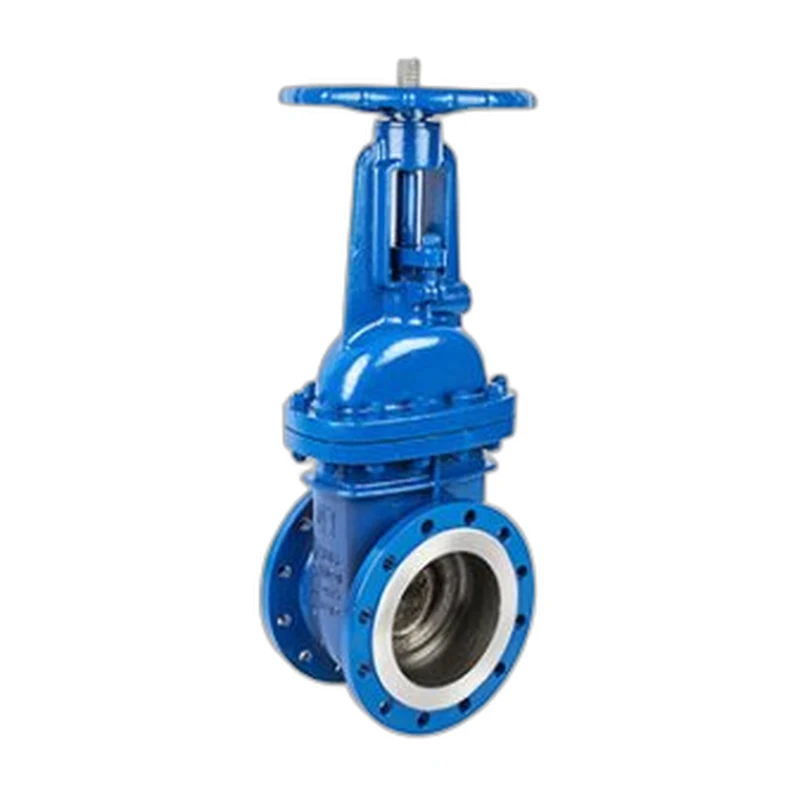

DIN Gate Valve PN16
A DIN-standard cast steel gate valve rated PN16 for full-bore isolation across a wide size range.
SizeDN50-DN1200PressurePN16 (range PN10-PN250)PortFull boreBodyGate (wedge)
CategoriesGate Valves
This DIN-pattern gate valve delivers full-bore, low-resistance isolation for pipeline service where minimal pressure drop and tight shut-off matter. Built to DIN dimensional standards in a choice of carbon and stainless steel body materials, it covers a broad DN50 to DN1200 size range and pressure classes from PN10 upward. The rising-stem wedge design opens to a clear bore, making it well suited to water, steam and general process duties in industrial and utility installations.
Specifications
Size Range
DN50-DN1200
Pressure Rating
PN16 (range PN10-PN250)
End Connections
Flanged (DIN)
Body Material
Carbon and stainless steel (1.0619, 1.1138, 1.4306, 1.4308, 1.4408, 1.7706)
Port Type
Full bore
Body Style
Gate (wedge)
Operation
Manual (handwheel)
Applications
Suited to water and steam systems, oil and gas, petrochemical and general industrial isolation duties requiring full-bore flow.
Design Standard
DIN3352 / DIN2501
Face to Face Standard
DIN3202
Key Features
- DIN-standard dimensions
- Full-bore wedge gate
- Wide DN50-DN1200 size range
- Carbon and stainless steel options
- PN16 rated (range to PN250)
Options
- Higher pressure classes (PN25/PN40/PN100)
