Purple Valves
PRPFL065

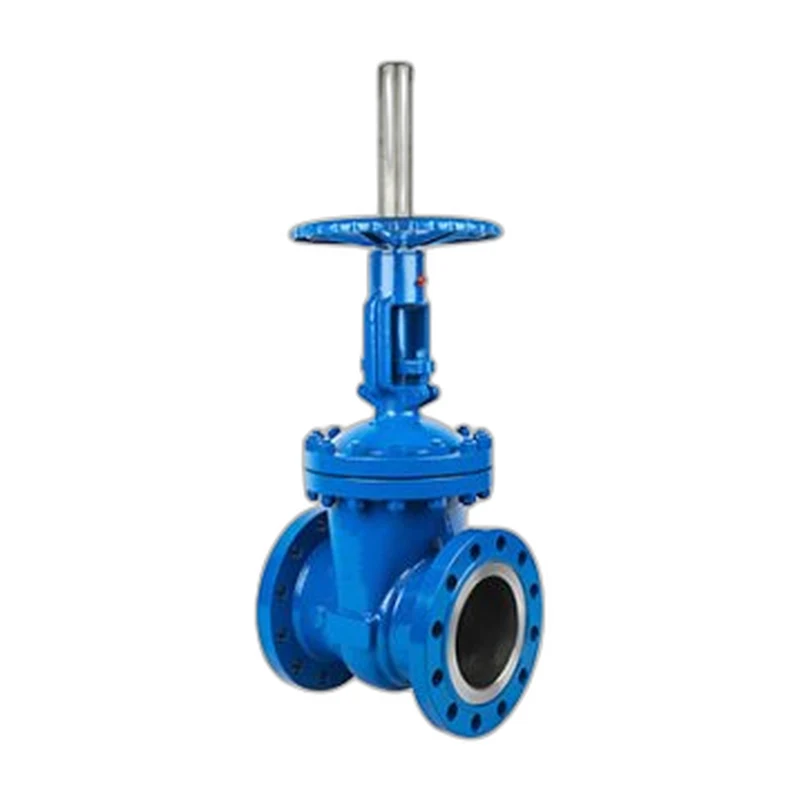

DIN Rising Stem Metal Seat Gate Valve Os&y PN25
A DIN OS&Y rising-stem cast steel gate valve rated PN25 for full-bore isolation in process and utility piping.
SizeDN50-DN1200PressurePN10 to PN250PortFull boreBodyOS&Y rising stem gate
CategoriesGate Valves
This DIN-standard gate valve uses an outside screw and yoke (OS&Y) rising stem, so the position of the stem gives a clear visual indication of whether the valve is open or closed. Linear motion of the stem raises and lowers the metal-seated wedge to give tight, full-bore isolation with minimal pressure drop when fully open. Cast in a range of carbon, stainless and alloy steels and rated to PN25, the valve is suited to higher-pressure water, steam and process service.
Specifications
Size Range
DN50-DN1200
Pressure Rating
PN10 to PN250
End Connections
Flanged
Body Material
Cast steel (1.0619, 1.1138, 1.4306, 1.4308, 1.4408, 1.7706)
Seat Material
Metal seated
Port Type
Full bore
Body Style
OS&Y rising stem gate
Operation
Manual (handwheel)
Applications
Higher-pressure water and steam isolation, process piping, and oil and gas service.
Design Standard
DIN
Key Features
- OS&Y rising stem with visual position indication
- Metal seated wedge
- Full-bore isolation
- PN25 rated cast steel body
