Purple Valves
PRPFL066

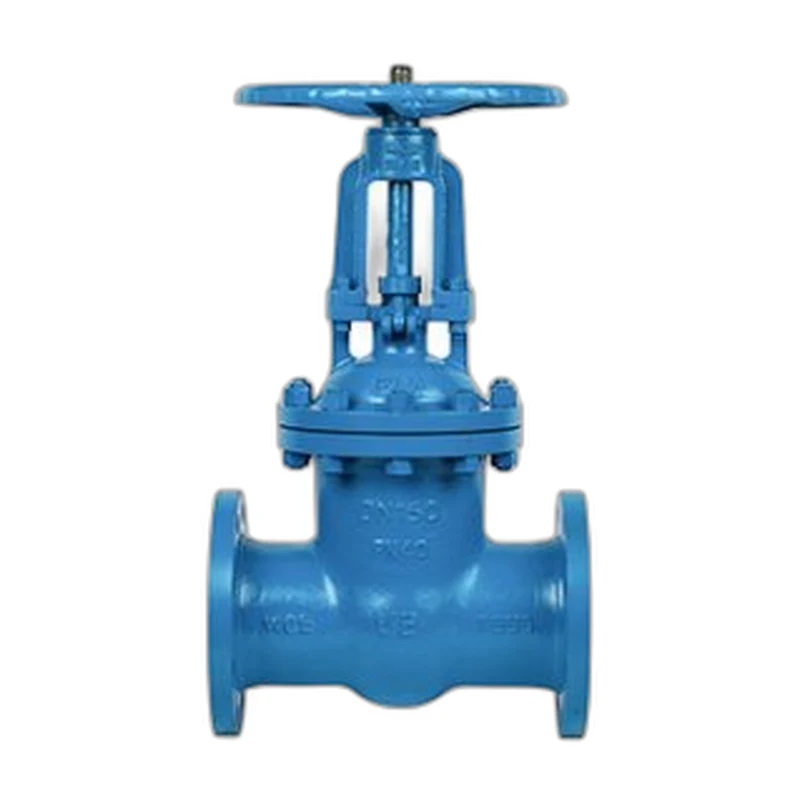

DIN Gate Valve PN40
DIN metal-seated wedge gate valve rated PN40 in carbon, alloy and stainless steel for industrial isolation duty.
SizeDN50-DN1200PressurePN10 to PN250BodyWedge gate, rising stem
CategoriesGate Valves
The DIN Gate Valve PN40 is a metal-seated wedge gate valve manufactured to DIN standards with a rising stem and bolted bonnet for reliable straight-through shut-off. Available in carbon, alloy and stainless steel grades across DN50 to DN1200, its hardfaced wedge and seats suit steam, water and general process pipelines that require robust isolation at moderate to high pressure.
Specifications
Size Range
DN50-DN1200
Pressure Rating
PN10 to PN250
End Connections
Flanged
Body Material
1.0619, 1.1138, 1.4306, 1.4308, 1.4408, 1.7706
Body Style
Wedge gate, rising stem
Operation
Handwheel
Applications
Steam, water and general industrial process isolation.
Design Standard
DIN
Key Features
- Metal-seated hardfaced wedge
- Rising stem, bolted bonnet
- Carbon, alloy and stainless grades
- PN40 rated
Options
- Body grades 1.0619, 1.1138, 1.4306, 1.4308, 1.4408, 1.7706
